Solid Polycarbonate Sheet Specifications 2026: Complete Thickness, Size & Weight Guide

September 5, 2026 · Solid Polycarbonate Sheets

Solid Polycarbonate Sheet Specifications 2026: Complete Thickness, Size & Weight Guide — photo 1
Solid Polycarbonate Sheet Specifications 2026: Complete Thickness, Size & Weight Guide — photo 2
Solid Polycarbonate Sheet Specifications 2026: Complete Thickness, Size & Weight Guide — photo 3
Solid Polycarbonate Sheet Specifications 2026: Complete Thickness, Size & Weight Guide — photo 4
1 / 4

All of these are covered in our range — our solid polycarbonate range, the 2026 installation guide, and the solid sheet selection guide — so you can move from specification to ordering on one page.

Solid Polycarbonate Sheet Specifications at a Glance

If you are specifying solid polycarbonate (PC) sheet in 2026, these are the numbers that matter. Thicknesses run from 1 mm to 30 mm, standard widths are 1220 / 1560 / 1820 / 2100 mm, and standard sheets are 6 m long with custom rolls up to 30 m. Clear sheet transmits up to 89% of visible light and delivers roughly 250 times the impact strength of glass at about half the weight.

The bottom line: solid PC sheet is the go-to glazing material wherever impact resistance, clarity and light weight all matter at once — machine guards, safety glazing, sound barriers, signage and skylights.

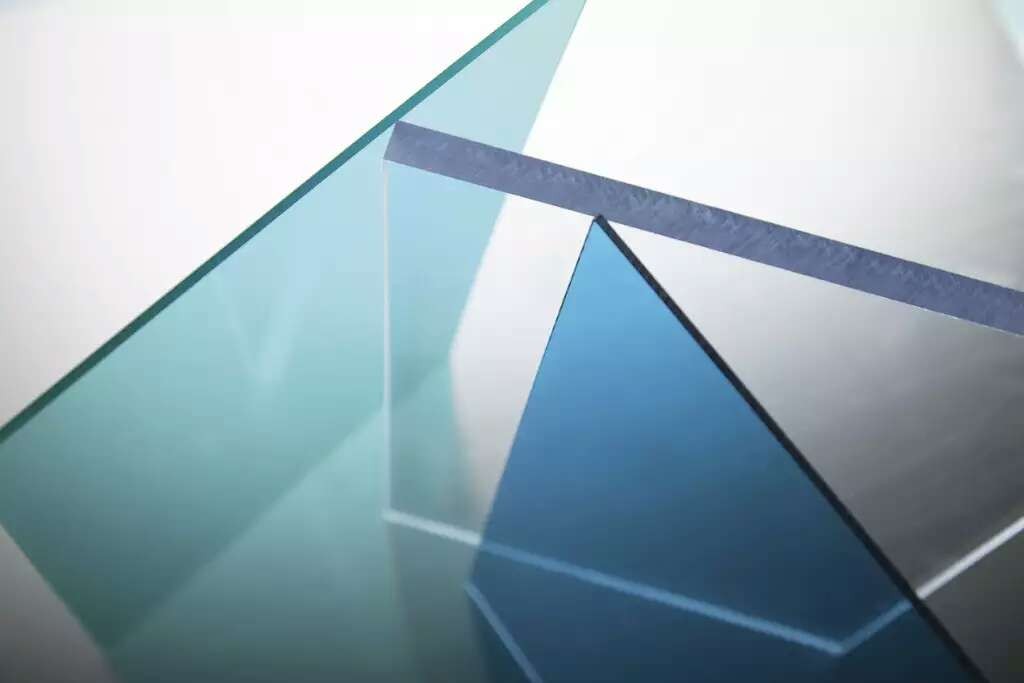

Stacked solid polycarbonate sheets showing clean cut edges and thickness

Complete Solid Polycarbonate Sheet Specification Table

As a manufacturer, Jietai produces the full range below. These are industry-standard values for extruded solid polycarbonate sheet; custom sizes and colours are available on request.

Parameter Standard Range
Thickness 1, 1.5, 2, 3, 4, 5, 6, 8, 10, 12, 15, 20, 25, 30 mm
Standard Width 1220, 1560, 1820, 2100 mm
Standard Length 6 m (custom 1–12 m; up to 30 m in roll form)
Density 1.2 g/cm³ (1.18–1.22)
Weight ≈1.2 kg/m² per mm of thickness
Light Transmission Up to 89% (clear sheet)
Impact Strength ≈250× that of glass
Flexural Strength ≥90 MPa
Tensile Strength ≥60 MPa
Fire Rating UL94 V-0 ~ V-2, B1 (GB 8624)
Service Temperature −40 °C to +120 °C
UV Protection Co-extruded UV layer, single or double side
Colors Clear, bronze, lake blue, grass green, opal, red, orange, gray, black, custom

Thickness and Weight Reference Table

Solid PC sheet weighs about 1.2 kg per square metre for every millimetre of thickness (density 1.2 g/cm³). The table below converts thickness to weight and suggests typical uses.

Thickness (mm) Weight (kg/m²) Typical Use
1 1.2 Lamination, overlays, thin glazing
1.5 1.8 Light diffusers, protective covers
2 2.4 Light boxes, thin glazing
3 3.6 Machine guards, signage
4 4.8 Glazing, machine guards, shelters
5 6.0 Security glazing
6 7.2 Safety glazing, sound barriers
8 9.6 Skylights, partitions
10 12.0 Heavy-duty safety glazing
12 14.4 Security glazing, barriers
15 18.0 Security and impact panels
20 24.0 Structural panels
25 30.0 Custom structural panels
30 36.0 Custom structural / ballistic panels

Standard Sizes: Width and Length

Our factory runs four standard widths — 1220 mm, 1560 mm, 1820 mm and 2100 mm — which lets you cut to job size with minimal waste. Standard sheet length is 6 m, custom lengths from 1 m to 12 m are available, and thin sheets (up to a few millimetres) can be supplied in rolls up to 30 m.

Solid PC sheet is easy to fabricate on site. It cuts, drills and routs cleanly, and can be cold-bent to a radius of about 150 times the sheet thickness. For fixed glazing, sheets are normally secured with aluminium profiles and self-tapping screws, with over-size pilot holes to allow thermal movement.

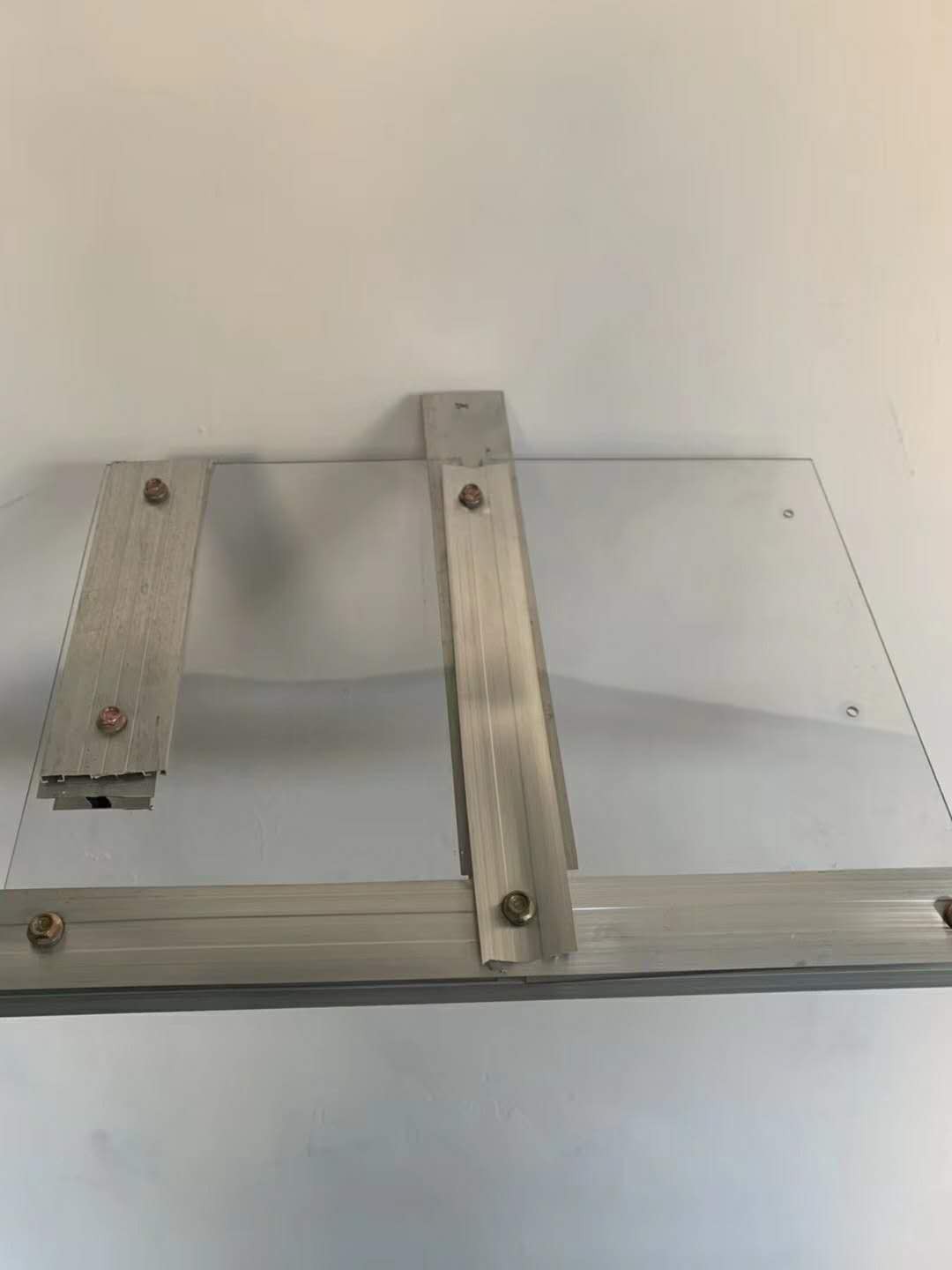

Solid polycarbonate sheet fixed with aluminium profile and screws

Optical, Mechanical and Thermal Performance

Clear solid polycarbonate transmits up to 89% of visible light — essentially on par with glass. Tinted sheets transmit less: bronze and grey typically 35–48%, opal/diffused white 55–68%. The co-extruded UV protection layer stops the material from yellowing, which is why solid PC glazing carries a 10–15 year outdoor warranty.

Mechanically, solid PC delivers flexural strength of at least 90 MPa and tensile strength of at least 60 MPa, with impact resistance roughly 250 times that of glass. It stays serviceable from −40 °C to +120 °C, and standard grades meet B1 (GB 8624) and UL94 V-0 to V-2 fire ratings — self-extinguishing and free of flaming droplets.

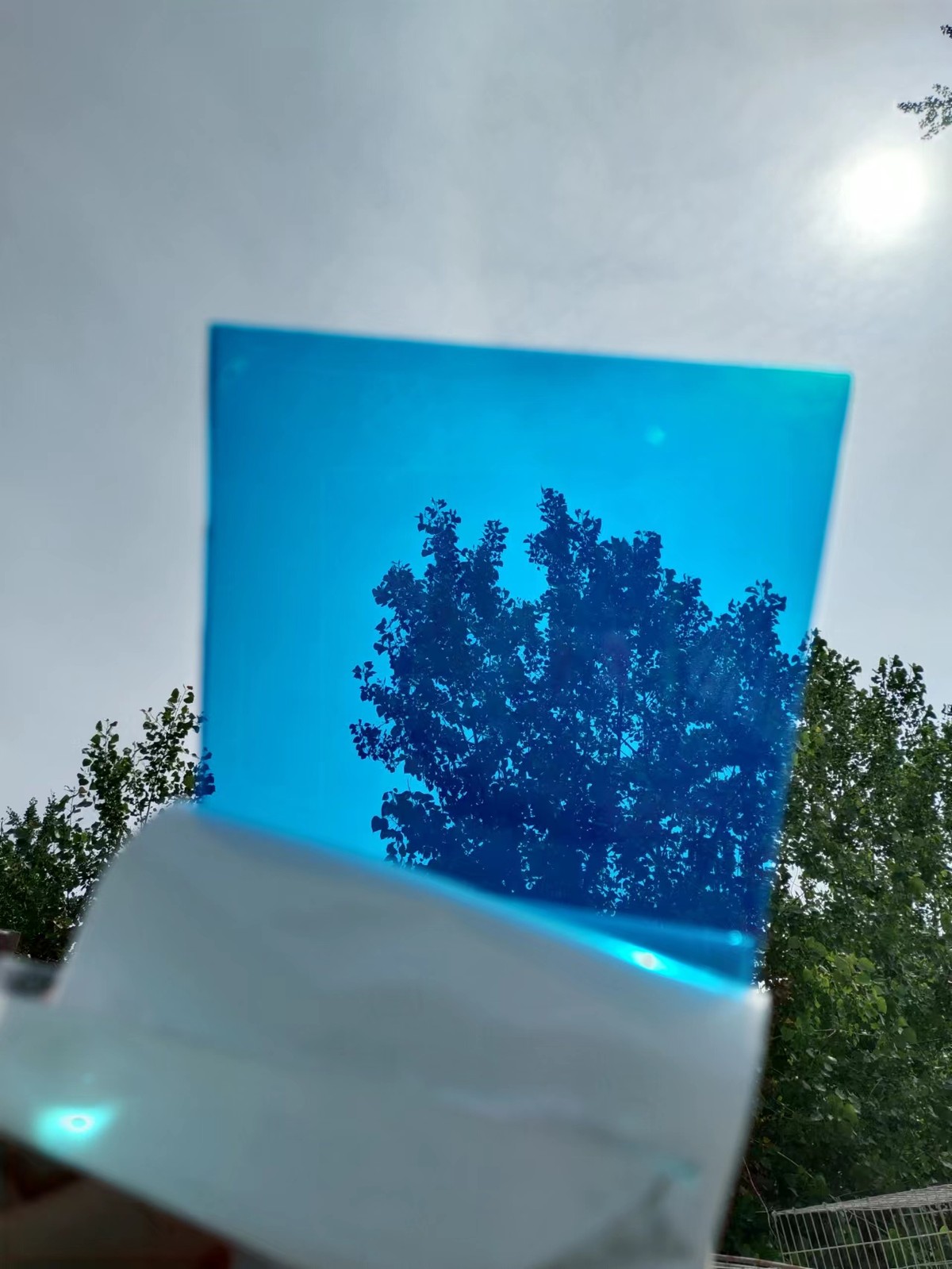

Blue solid polycarbonate sheet held up to the light showing its transparency

Common Applications for Solid Polycarbonate Sheet

  • Machine guards and safety shields
  • Bus shelters and canopy glazing
  • Highway and railway sound barriers
  • Advertising light boxes and backlit signage
  • Skylights and sunrooms
  • Swimming pool and balcony enclosures
  • Security and anti-vandal glazing

Why Jietai as Your Solid Sheet Manufacturer

Jietai is a polycarbonate sheet manufacturer, not a middleman. We extrude solid PC sheet in-house across the full thickness and width range, apply the UV layer at the die, and cut to custom size before export. That means you get factory-direct pricing, consistent colour and thickness, and a single point of contact for specification support. Contact our team for a quote on your project.

Frequently Asked Questions

What thickness of solid polycarbonate sheet do I need?

It depends on the application. Thin sheets (1–3 mm) suit light boxes, signage and simple guards; 4–6 mm is the workhorse for glazing, machine guards and shelters; 8–12 mm handles heavy-duty safety glazing and skylights; and 15 mm and above is used for security and structural panels. Tell us your span and load and we will recommend the right thickness.

What are the standard sizes of solid polycarbonate sheets?

Standard widths are 1220 mm, 1560 mm, 1820 mm and 2100 mm, with a standard length of 6 m. We also supply custom lengths from 1 m to 12 m, and thin sheets can be supplied in rolls up to 30 m.

How much does a solid polycarbonate sheet weigh?

Solid PC sheet weighs about 1.2 kg per square metre per millimetre of thickness. A 4 mm sheet is about 4.8 kg/m² and a 10 mm sheet about 12 kg/m² — roughly half the weight of glass of the same thickness.

How much light does solid polycarbonate sheet transmit?

Clear solid polycarbonate transmits up to 89% of visible light, close to glass. Tinted colours transmit less: bronze and grey typically 35–48%, and opal/diffused white 55–68%.

Is solid polycarbonate sheet fire resistant?

Yes. Standard sheets meet B1 (GB 8624) and UL94 V-0 to V-2 ratings and are self-extinguishing — they do not support combustion or produce flaming droplets the way some other plastics do.

Need the complete solid sheet specification?

Send us four things and we’ll come back with the sheet spec, thickness options and fixing details for your project — plus a reference project for the same application:

  • What the project is — roofing, canopy, partition, skylight, or signage
  • Size — sheet dimensions or total area in m²
  • Quantity — sheets or square metres
  • Destination country or port
