Reliable Roofing for Large-Scale Sports Venues
Modern sports stadiums and gymnasiums demand roofing solutions that balance natural light, structural integrity, and energy efficiency. U-Lock polycarbonate panels from Jietai deliver exceptional performance for large-span roofing applications, providing optimal illumination while reducing HVAC loads. From professional sports arenas to school gymnasiums, our U-Lock system offers a proven solution trusted by architects worldwide.

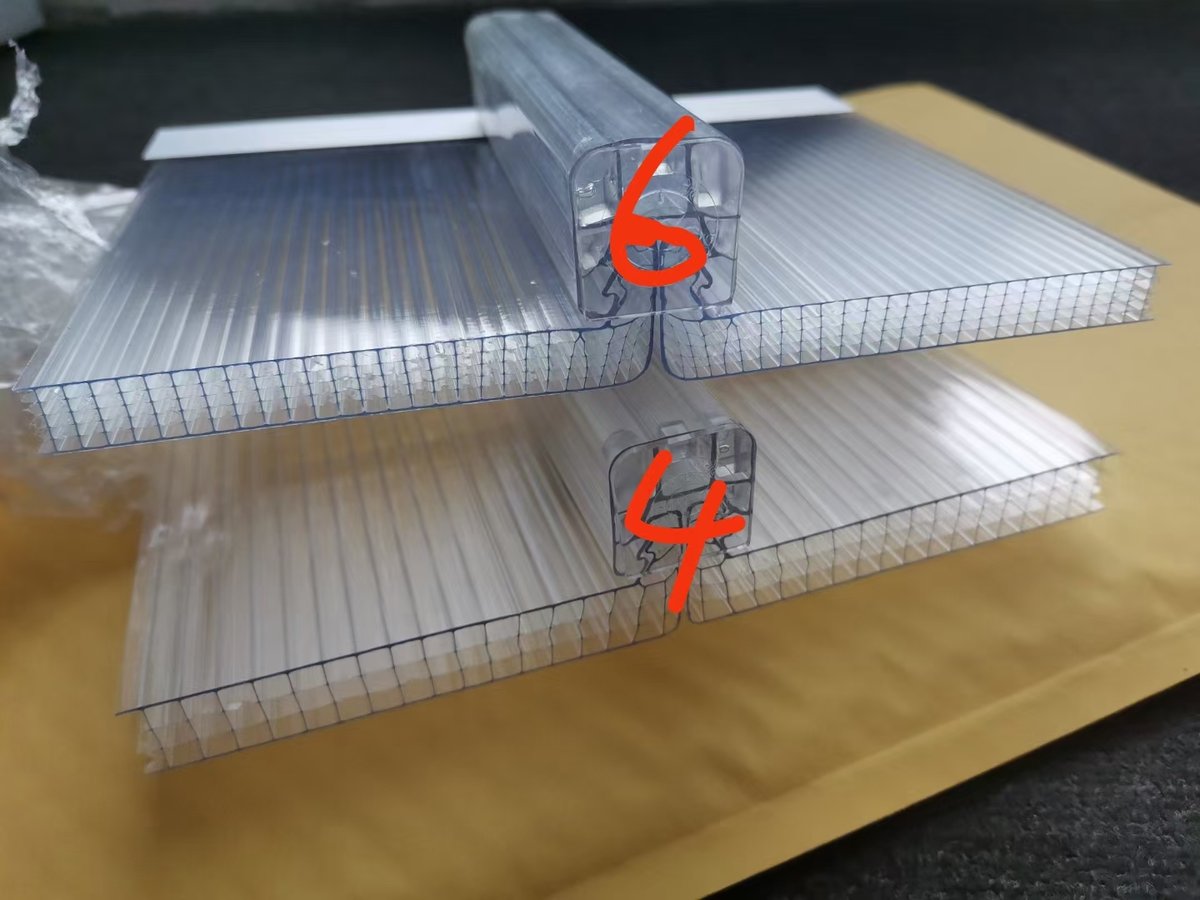

Key Features of U-Lock Panels for Sports Venues
- Large-Span Capability: Wide 1040mm panels reduce the number of support structures needed, maximizing unobstructed interior space for courts and fields.
- Superior Impact Resistance: Up to 200 times stronger than glass, protecting against hail, balls, and accidental impacts.
- UV Protection: Co-extruded UV layer on both sides prevents yellowing and maintains optical clarity for 10+ years.
- Thermal Insulation: Multi-wall hollow structure with U-value as low as 1.5 W/m²·K reduces heating and cooling costs.
- Light Transmission: 25-82% light transmission options create bright, naturally lit athletic spaces while reducing glare.
- Cold Bending: Can be curved on-site (min. radius 3-8m) for arched roof designs common in modern stadium architecture.
- Fire Rated: B1 fire rating and UL94 V-0 to V-2 classification for safety compliance in public venues.
Technical Specifications
| Parameter | Available Range |
|---|---|
| Width | 600mm (standard), 1040mm (wide-span) |
| Thickness | 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 25mm, 30mm, 32mm, 40mm |
| Structure | Dual-wall → 4-wall → 6-wall → Honeycomb/X-grid → Reinforced X-grid |
| Lock Type | Single-hook (6-12mm), Dual-hook (14mm+) |
| Length | 6m standard, custom 1-30m available |
| Cold Bending | Min. radius 3-8m for arched designs |
| Fire Rating | B1, UL94 V-0 to V-2 |
| Temperature Range | -40°C to +120°C |
Applications
- Professional Stadiums: Large-span U-Lock panels create dramatic, light-filled venues for competitive sports.
- School & University Gymnasiums: Durable, safe roofing that withstands impacts while providing excellent natural lighting for student athletes.
- Indoor Swimming Pools: Corrosion-resistant U-Lock panels handle humid pool environments perfectly.
- Training Facilities: Consistent diffused natural light reduces eye strain and improves visibility during practice sessions.
- Multi-Purpose Sports Centers: Flexible roofing solutions adaptable to various court configurations and event types.
Why Choose Jietai for Sports Venue Roofing?
Jietai supplies the complete U-Lock Polycarbonate System with matching aluminum profiles (U-channel, I-beam, cover caps) and EPDM sealing gaskets. Our technical team provides installation guidance and structural calculations to ensure your sports venue roof performs flawlessly for decades.
Frequently Asked Questions
Can U-Lock panels span the wide distances required in sports stadiums?
Yes. The 1040mm wide-span U-Lock panels, combined with reinforced X-grid structure in 25-40mm thicknesses, can achieve spans suitable for most gymnasium and smaller stadium applications. For larger spans, our engineering team can design optimized support structures.
How do U-Lock panels handle acoustics in sports venues?
The multi-wall hollow structure naturally dampens sound reverberation, reducing echo in gymnasiums and indoor courts. Additional acoustic treatments can be integrated with the aluminum support system if required.
What is the lifespan of U-Lock panels in a stadium environment?
With the co-extruded UV protection layer, U-Lock polycarbonate panels maintain their structural integrity and appearance for 10-15 years in outdoor stadium environments, and longer in covered or indoor applications.
Contact our team for a custom roofing solution for your sports venue project.
