Reliable Roofing That Won’t Leak, Won’t Rust, and Won’t Weigh You Down
Carports and canopies live outdoors 365 days a year. They face wind uplift, heavy rain, snow loads, and constant UV exposure. Traditional roofing materials — metal sheets, polycarbonate corrugated panels, or glass — all have a weak point: metal rusts at cut edges, corrugated sheets lack structural rigidity for wide spans, and glass is heavy and dangerous to install.
U-Lock polycarbonate panels solve every one of those problems. Their patented U-shaped vertical locking mechanism creates a continuous, watertight roof surface that handles spans up to 12 meters without intermediate supports — all at a fraction of the weight of glass or metal.
Why U-Lock Panels Are the Smart Choice for Carport & Canopy Roofs

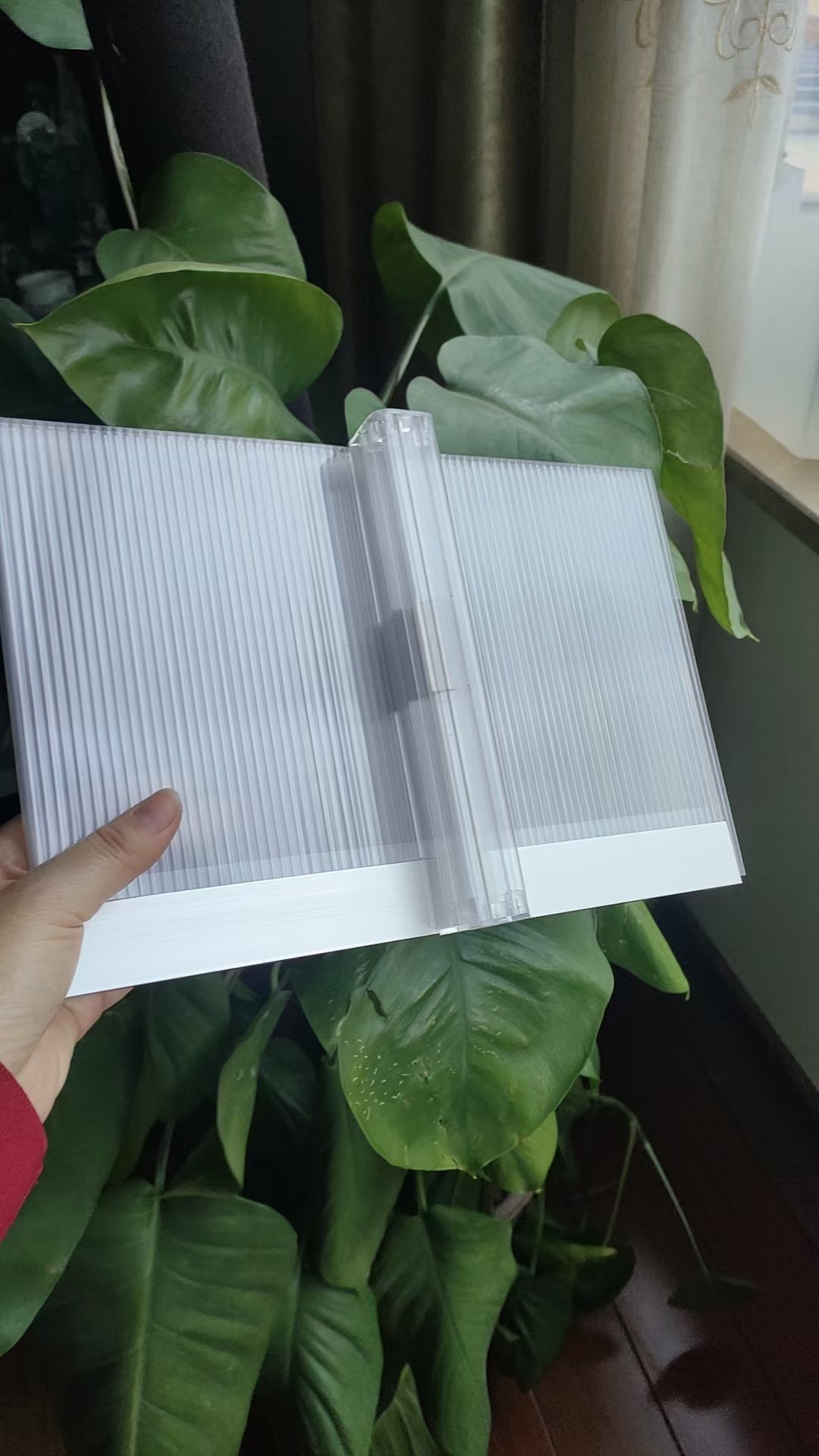

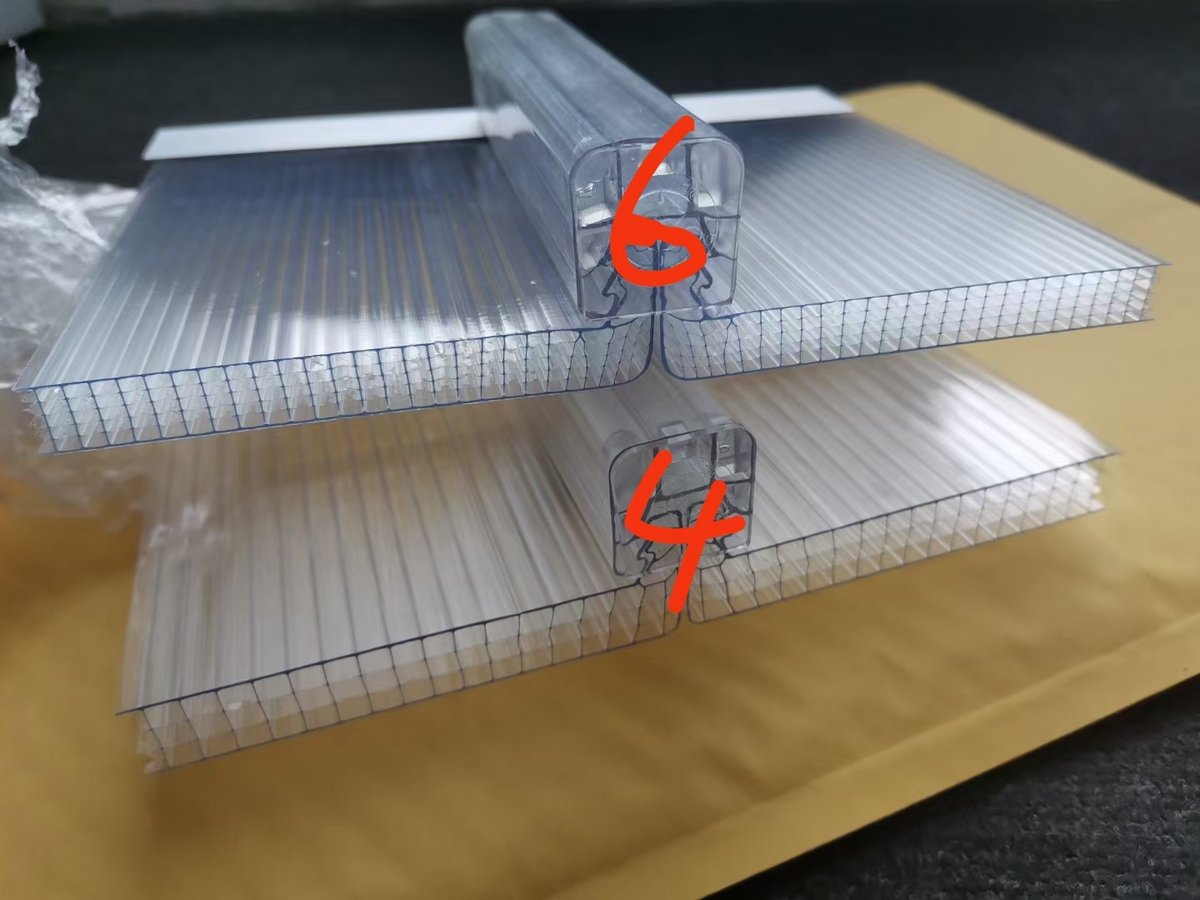

1. Zero Leakage — The U-Shaped Lock Edge
Unlike tongue-and-groove systems that rely on tight friction alone, U-Lock panels interlock through a raised U-channel that diverts water away from the joint. Combined with EPDM gaskets and an aluminum U-channel substructure, the system achieves watertight performance that meets Class 4 (highest) waterproofing standards per EN 12467.
2. Lightweight but Impact-Resistant
At just 1.5–4.5 kg/m², a U-Lock roof adds minimal dead load to your steel or timber substructure. Yet the same panel is 200–250 times stronger than glass of equivalent thickness — hail, falling branches, and accidental impacts won’t crack it.
3. Thermal Insulation That Lowers Energy Bills
The multi-wall construction (twin-wall up to 6-layer honeycomb) creates dead-air chambers that deliver U-values from 1.5 to 3.2 W/m²·K. A covered parking area or walkway stays noticeably cooler in summer and warmer in winter versus single-layer polycarbonate or metal roofing.
4. 100% UV Protection — No Yellowing After Years
Every U-Lock panel comes with co-extruded UV protection on both faces (30–50 μm). The substrate remains clear, translucent, or coloured without significant yellowing for 10+ years, backed by manufacturer warranties.
Technical Specifications — U-Lock Panels for Carport & Canopy
| Parameter | Available Range |
|---|---|
| Panel width | 600 mm (narrow — small carports, awnings) 1040 mm (wide — engineering mainstream for large canopies) |
| Panel thickness | 6 mm – 40 mm (8/10/12/16/20/25/30/32/40 mm) |
| Lock type | Single-hook (6–12 mm) / Double-hook (14 mm+) — double-hook recommended for wind uplift resistance |
| Structure | Twin-wall → 4-layer → 6-layer honeycomb → Rice-grain reinforced |
| Standard length | 6,000 mm (6 m) — truckload standard |
| Custom length | 1 m – 30 m (any cut; express delivery for lengths ≤12 m) |
| Weight | 1.5–4.5 kg/m² (depending on thickness and structure) |
| Light transmission | Clear: up to 82% / Opal white: ~45% / Bronze: ~25% |
| U-value (thermal) | 1.5–3.2 W/m²·K (improves with thicker multi-wall construction) |
| UV protection | Co-extruded UV layer, both faces, 30–50 μm |
| Fire rating | B1 (DIN 4102), UL94 V-0 ~ V-2 |
| Temperature range | -40°C to +120°C |
| Cold bending radius | Minimum 3–8 m (depending on thickness) — enables arched canopy designs |
Ideal Applications — Where U-Lock Panels Excel

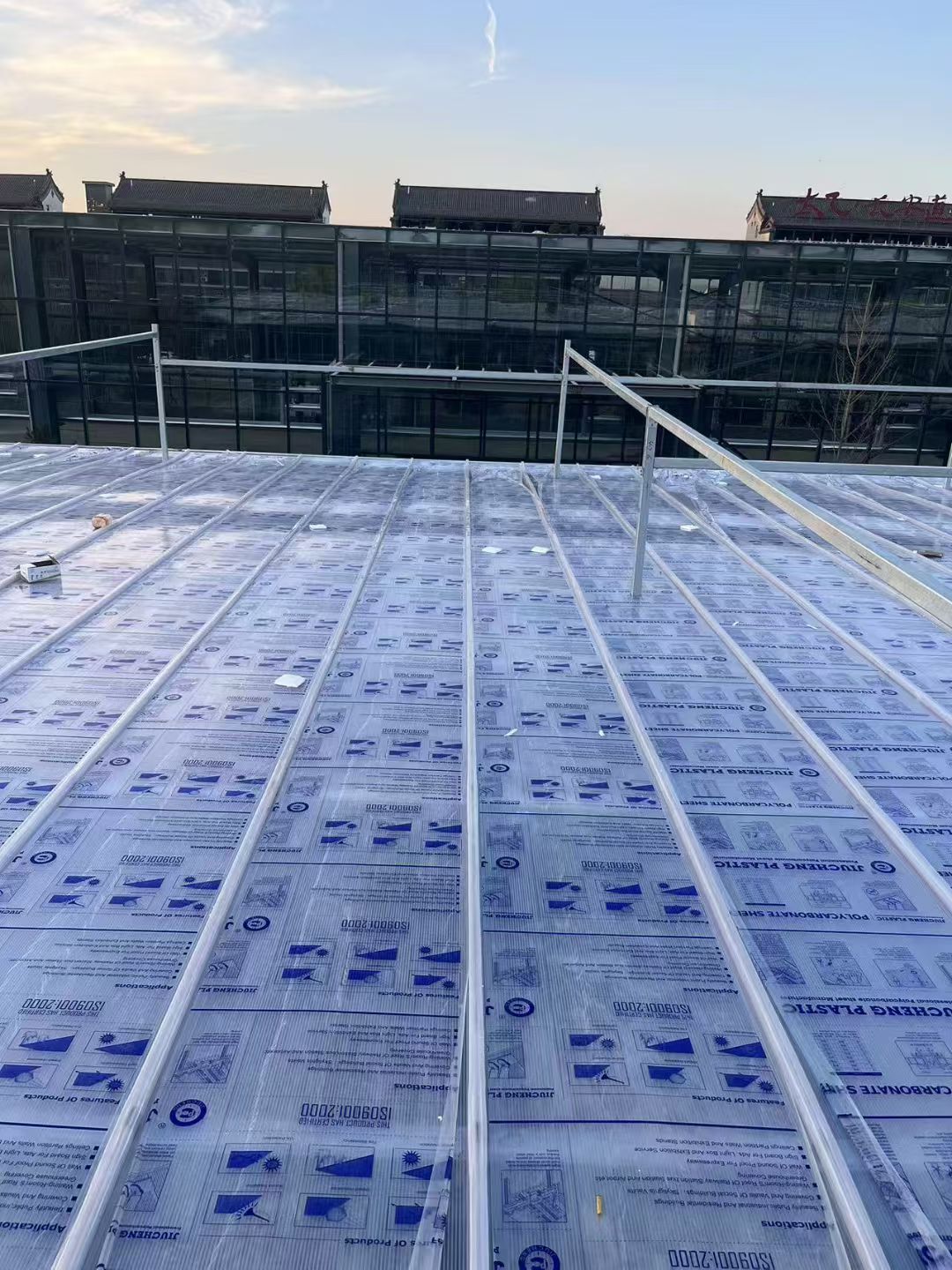

🏠 Residential Carports
Protect one or multiple vehicles with a clean, modern roof that lets natural light through. U-Lock panels are far quieter under rain than metal sheeting — no drumming noise during storms.

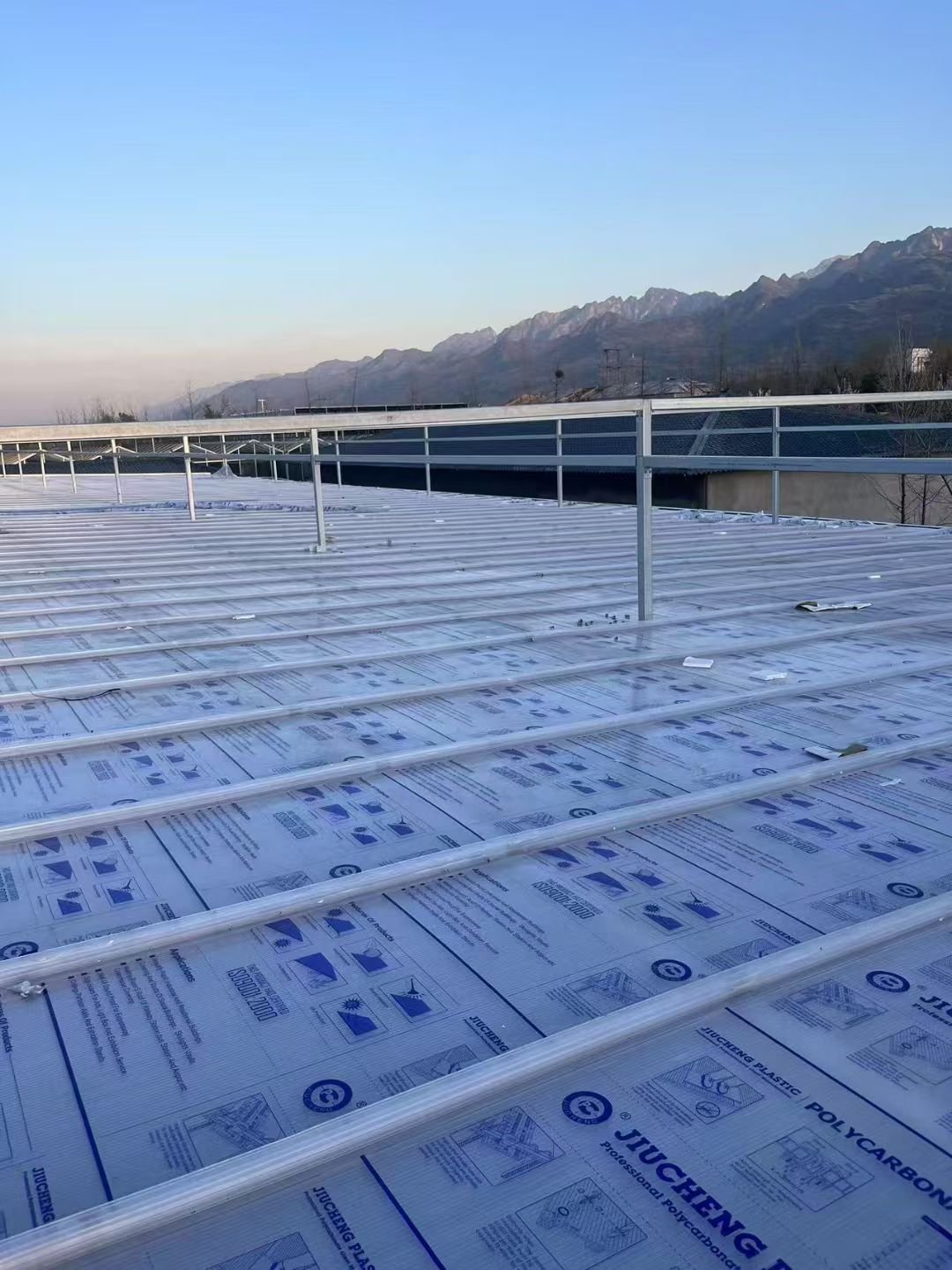

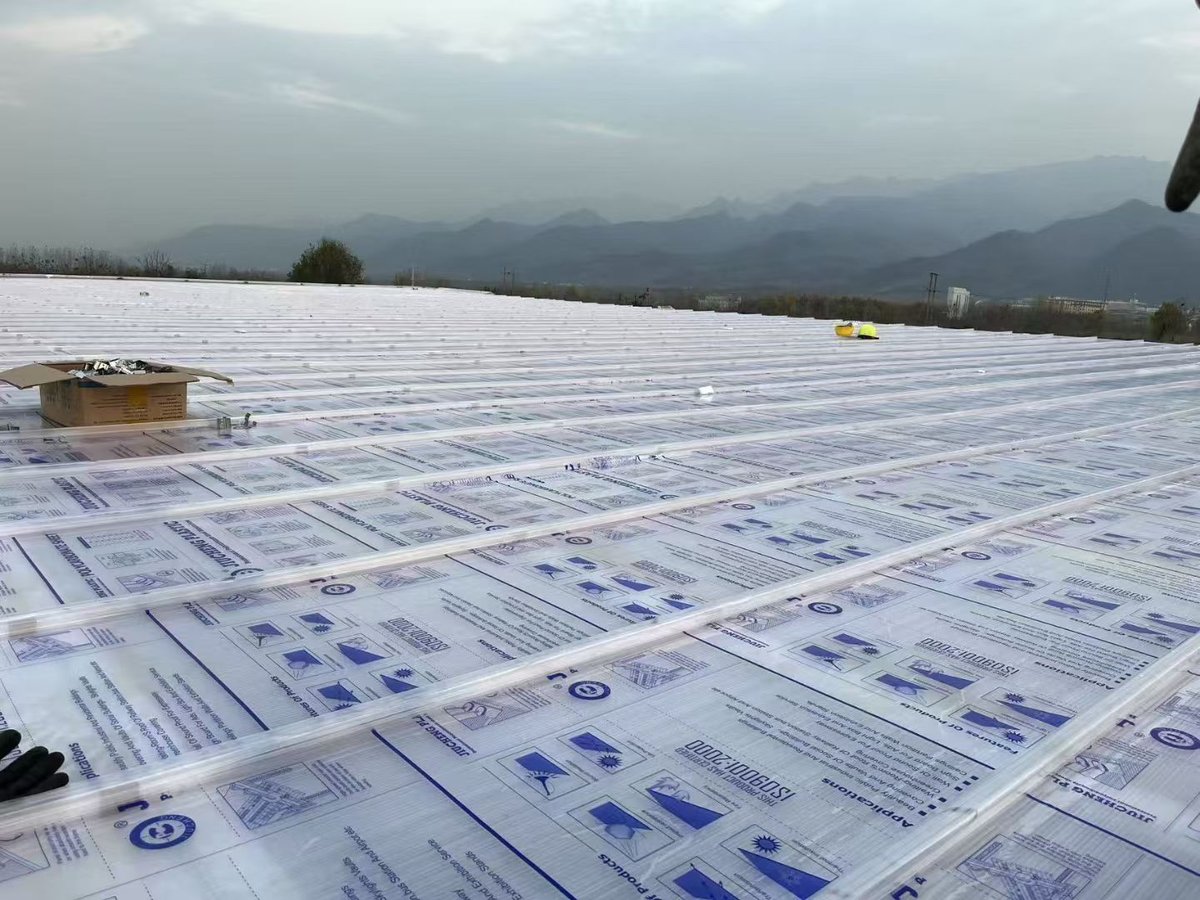

🏢 Commercial Canopies & Walkway Covers
Entrance canopies for hotels, shopping centres, schools, and hospitals benefit from the combination of durability and aesthetic transparency. The U-Lock system spans wide column-free areas (up to 12 m) without bulky beams.
🏪 Patio & Outdoor Dining Covers
Restaurants and cafés can extend their usable space year-round with a translucent canopy that provides shelter without blocking daylight. The UV-blocking layer protects furniture and customers from harmful rays.
🏭 Industrial Loading Bay Canopies
Warehouse loading docks and logistics centres require roofing that withstands forklift exhaust, dust, and occasional impacts. U-Lock panels are chemical-resistant and easy to clean — a simple hose-down restores clarity.
⛽ Petrol Station & Service Area Canopies
U-Lock roofing for fuel station canopies meets strict fire codes (B1, UL94 V-0) and provides excellent light transmission to illuminate the dispensing area during daytime, reducing artificial lighting costs.
Complete System — Not Just Panels
A U-Lock roof is a matched system. Every Jietai supply includes:
- Aluminium U-channel profiles — bottom rail, top cap, and I-beam connectors
- EPDM rubber gaskets — pre-cut to panel width for watertight sealing
- Thermal expansion clips — allow the polycarbonate to expand/contract without buckling
- End-closure tapes — keep dust and insects out of the air cavities
- Installation manual — step-by-step guide with recommended purlin spacing
This integrated system approach means one source, one responsibility — no hunting for compatible profiles from different suppliers.
Customisation & OEM Services
As a dedicated polycarbonate trading company with deep factory partnerships, Jietai offers:
- ✅ Custom widths (beyond standard 600/1040 mm — inquire for feasibility)
- ✅ Custom lengths (1–30 m, any cut length)
- ✅ RAL colour matching (any colour on request)
- ✅ Custom UV-layer thickness (up to 80 μm for extreme UV locations)
- ✅ Private label / OEM branding on protective film
- ✅ Mixed container loads (combine U-Lock panels with solid sheet, multiwall, or corrugated)
Minimum order quantity: Flexible — from single-project quantities to full container loads.
Frequently Asked Questions
Can U-Lock panels be installed on an existing carport frame?
Yes — as long as the purlin spacing does not exceed the recommended span for the chosen thickness. A site survey or structural drawing review by our technical team is recommended before ordering.
How do U-Lock panels compare to corrugated polycarbonate for a canopy?
Corrugated sheets are economical for small spans (≤3 m) but leak at overlaps and lack rigidity over wide areas. U-Lock panels eliminate overlaps entirely — each join is a factory-machined lock edge — and span 4–12 m without intermediate supports.
Can U-Lock panels be curved for an arched canopy?
Yes. U-Lock panels can be cold-bent to a minimum radius of 3–8 m depending on thickness. For tighter curves (≤3 m radius), factory heat-bending is available.
What is the lifespan of a U-Lock polycarbonate carport roof?
With proper installation and dual-sided UV protection, expect 15–20 years of service life. The manufacturer warranty covers UV degradation (yellowing) for 10 years.
Do I need special tools to install U-Lock panels?
Standard construction tools — circular saw with fine-tooth blade, drill, rivet gun, and measuring tape — are sufficient. Specialised aluminium profile cutters and EPDM-roller tools are recommended but can be supplied along with the material.
Get a Custom Quote for Your Carport or Canopy Project
Every project is different. Tell us your dimensions, preferred colour, and required thickness, and we’ll prepare a detailed quotation with system components, recommended purlin spacing, and estimated delivery time — typically within 24 hours.
Contact our team for a quote → Include roof dimensions (L × W), panel colour preference, and whether you need a curved or flat design.
