Reliable Roofing for Pools and Patios
Swimming pool enclosures and patio covers face constant exposure to moisture, UV radiation, and temperature extremes. U-Lock polycarbonate panels offer the ideal combination of light transmission, weather resistance, and structural integrity required for these demanding outdoor applications. Whether you are building a residential pool enclosure, a commercial patio cover, or a large-scale aquatic center roof, Jietai’s U-Lock Polycarbonate System delivers a reliable, long-lasting solution.
Key Features of U-Lock Polycarbonate Panels
- Leak-Proof U-Lock Design: The unique U-shaped locking mechanism creates a watertight seal between panels, eliminating leak points common with traditional roofing systems.
- UV Resistance: Co-extruded UV protection layer on both sides prevents yellowing and degradation, maintaining optical clarity for 10+ years.
- High Impact Strength: Up to 200 times stronger than glass, these panels withstand hail, heavy snow loads, and accidental impacts.
- Light Transmission: Transparent panels offer up to 82% light transmission, naturally illuminating pool and patio areas while reducing artificial lighting costs.
- Thermal Insulation: Multi-wall hollow structure provides excellent insulation, reducing heat loss in winter and heat gain in summer.
- Cold Bending: U-Lock panels can be cold-bent to a minimum radius of 3-8 meters, enabling curved roof designs for modern architectural aesthetics.
Technical Specifications
| Parameter | Available Range |
|---|---|
| Width | 600mm (standard), 1040mm (wide-span) |
| Thickness | 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 25mm, 30mm, 32mm, 40mm |

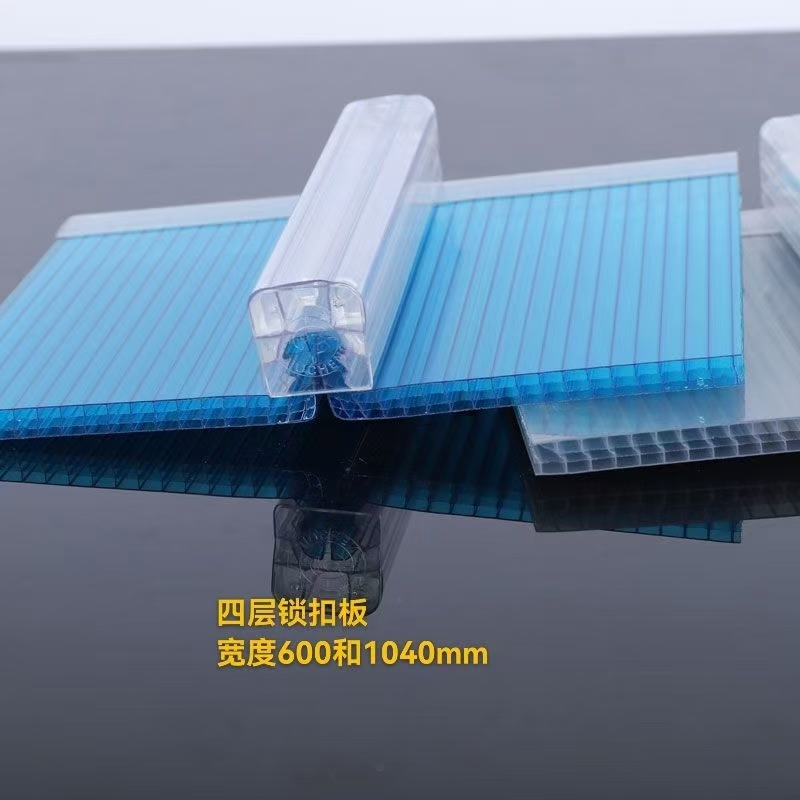

| Structure | Dual-wall → 4-wall → 6-wall → Honeycomb/X-grid → Reinforced X-grid |
| Lock Type | Single-hook (6-12mm), Dual-hook (14mm+) |
| Length | 6m standard, custom 1-30m available |
| Color Options | Clear, Opal White, Bronze, Blue, Green, Grey, Custom RAL |
| UV Layer | Co-extruded UV on both sides, 30-50μm |
| Cold Bending Radius | Min. 3-8m (curved roof applications) |
| Fire Rating | B1, UL94 V-0 to V-2 |
| Temperature Range | -40°C to +120°C |
Applications for Pool Enclosures & Patio Covers
- Residential Pool Enclosures: Create a comfortable swimming environment year-round while protecting against debris and weather.
- Commercial Aquatic Centers: Large-span U-Lock panels (1040mm width) reduce the number of supporting structures needed, maximizing natural light and open space.
- Patio & Deck Covers: Extend outdoor living spaces with a durable, translucent roof that provides shade while maintaining brightness.
- Restaurant & Cafe Terraces: Create all-weather outdoor dining areas with excellent light transmission and UV protection.
- Hotel & Resort Pool Areas: Elegant curved or flat roofing solutions that enhance guest experience and reduce energy costs.
Why Choose Jietai’s U-Lock System?
As a trusted supplier of polycarbonate solutions, Jietai offers the complete U-Lock Polycarbonate System including matching aluminum alloy profiles (U-channel, I-beam, cover caps) and EPDM sealing gaskets. Our technical team provides full installation guidance to ensure your pool enclosure or patio cover performs flawlessly for decades.
Frequently Asked Questions
Can U-Lock panels be used for curved pool enclosures?
Yes. U-Lock panels can be cold-bent on-site to a minimum radius of 3 meters (8mm-12mm panels) or 8 meters (20mm+ panels), allowing for elegant arched roof designs over pools and patios.
How do U-Lock panels handle humidity and moisture?
The dual-hook locking system combined with EPDM sealing gaskets creates a fully watertight seal. The aluminum U-channel system includes condensation drainage channels, preventing moisture buildup inside the panel structure.
What is the typical lifespan of U-Lock panels in pool environments?
With proper installation and the co-extruded UV protection layer, U-Lock polycarbonate panels maintain their structural integrity and optical clarity for 10-15 years in outdoor pool environments.
Are the panels easy to clean?
Yes. The smooth surface resists algae and mold growth. Regular cleaning with mild soap and water is sufficient to maintain clarity and appearance.
Contact our team for a custom quote on your pool enclosure or patio cover project.
