What Is PC Sheet for Factory Machine Guard?
Polycarbonate (PC) sheet for factory machine guard is a high-performance transparent protective panel specifically engineered for industrial machinery safety applications. Made from virgin polycarbonate resin through advanced extrusion technology, these sheets offer an optimal balance of impact resistance, optical clarity, and lightweight construction. Unlike traditional materials such as tempered glass or acrylic, PC sheets are virtually unbreakable under normal industrial conditions, providing reliable protection against flying debris, tool fragments, and accidental operator collisions.
PC machine guard sheets comply with international safety standards including OSHA and CE requirements, making them the preferred choice for factory safety managers worldwide. Their excellent light transmission (up to 89%) allows operators to clearly monitor machine operations without removing guards, enhancing both safety and productivity. Available in a range of thicknesses from 3mm to 12mm, these sheets can be customized to meet specific protection level requirements for different types of industrial equipment.
Key Features of PC Machine Guard Sheets
Our polycarbonate machine guard sheets offer a comprehensive set of features designed for demanding industrial environments. The standout feature is their extraordinary impact resistance — PC sheets are approximately 250 times stronger than glass and 30 times stronger than acrylic, capable of withstanding significant mechanical shocks without cracking or shattering. This shatterproof characteristic ensures that even when subjected to extreme force, the sheet will not produce sharp, dangerous fragments that could injure nearby personnel.
Heat resistance is another critical feature, with PC sheets maintaining structural integrity across a wide temperature range from -40°C to 120°C. This makes them suitable for applications near hot machinery, welding stations, and heat treatment equipment. The sheets also exhibit excellent chemical resistance against industrial oils, lubricants, and common solvents, ensuring long-term reliability in manufacturing environments. Additionally, the UV-resistant coating protects against yellowing and degradation when exposed to sunlight in factory settings with natural lighting.
Easy maintenance is a practical advantage — the smooth, non-porous surface resists dust accumulation and can be cleaned with standard industrial cleaning agents without scratching or clouding. The lightweight nature of PC (approximately half the weight of glass) simplifies installation, reduces structural support requirements, and makes guard replacement faster and less labor-intensive.
Technical Specifications
Our PC machine guard sheets are manufactured to precise engineering standards. Standard thickness options range from 3mm, 5mm, 6mm, 8mm, to 10mm, with custom thicknesses available upon request. Standard sheet dimensions are 1220mm × 2440mm (4ft × 8ft), with custom sizing available for specific machine guard requirements. The tensile strength typically exceeds 60 MPa, while flexural strength reaches 90 MPa, ensuring structural rigidity during prolonged use.
Key technical parameters include: light transmittance of 85-89% for clear sheets, density of 1.2 g/cm³, tensile modulus of elasticity exceeding 2,300 MPa, and Izod impact strength (notched) of 600-850 J/m. The material achieves a UL94 V-2 flammability rating, and the operating temperature range spans from -40°C to +120°C. Each sheet is manufactured in compliance with ISO 9001 quality management systems, with consistent thickness tolerance of ±0.1mm for precision fit in guard frames.
The sheets can be easily fabricated using standard tools — circular saws, jigsaws, or routers for cutting, and standard twist drills for drilling mounting holes. For optimal results, we recommend using carbide-tipped blades and maintaining proper feed rates to prevent edge melting.
Typical Applications

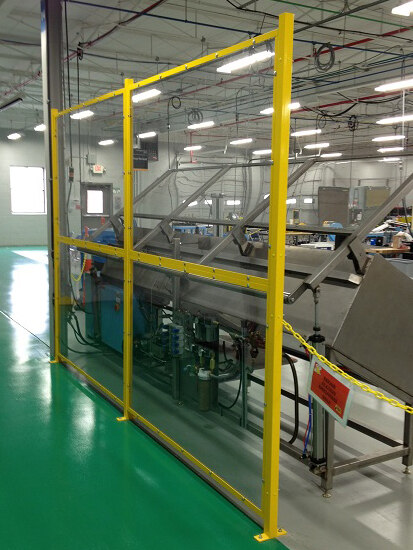

PC machine guard sheets are deployed across a wide spectrum of industrial sectors. In machinery manufacturing plants, they serve as lathe guards, milling machine enclosures, drill press shields, and CNC machine safety barriers. The optical clarity enables precise workpiece observation while maintaining complete operator safety. Electronic factories use PC guards for clean room partitions, soldering station splash shields, and automated assembly line protective covers.
Automotive manufacturing workshops benefit from PC guards on robotic welding cells, conveyor system safety barriers, and painting booth viewing windows where chemical resistance is essential. Food processing facilities utilize these sheets due to their easy-clean surface and resistance to food-grade cleaning agents. Warehousing and logistics centers install PC guards on packaging machinery, sorting equipment, and automated storage systems to prevent worker injury. The versatility also extends to custom applications such as noise reduction barriers, thermal shields near furnaces, and protective screens for laboratory equipment.
Why Choose Our PC Machine Guard Sheets?
When selecting protective materials for factory machinery, quality and reliability are paramount. Our PC sheets are manufactured from 100% virgin polycarbonate resin — never regrind or recycled material — ensuring consistent mechanical performance and long service life. Each production batch undergoes rigorous quality testing including impact resistance verification, thickness uniformity checks, and optical clarity assessment before shipment.

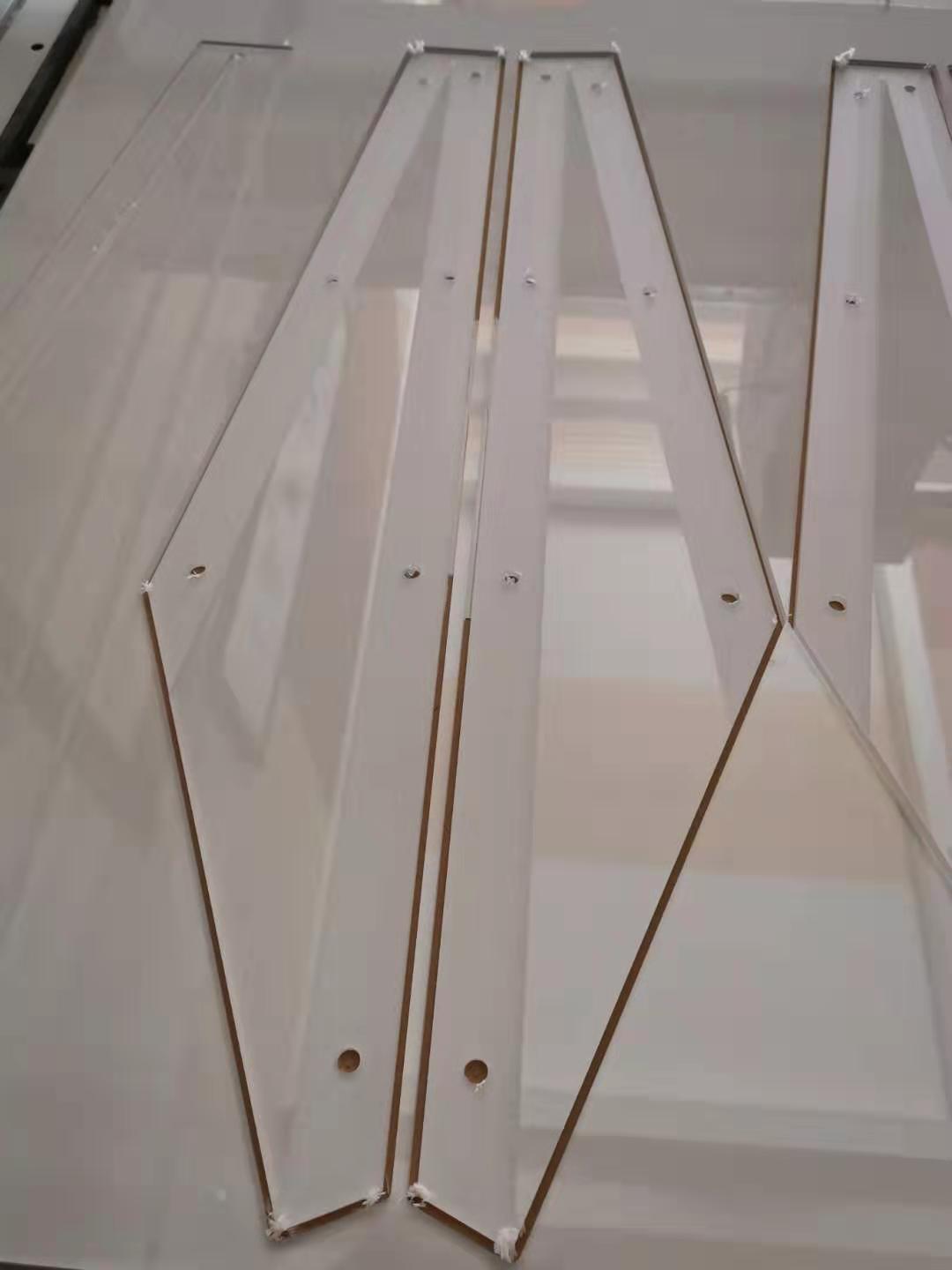

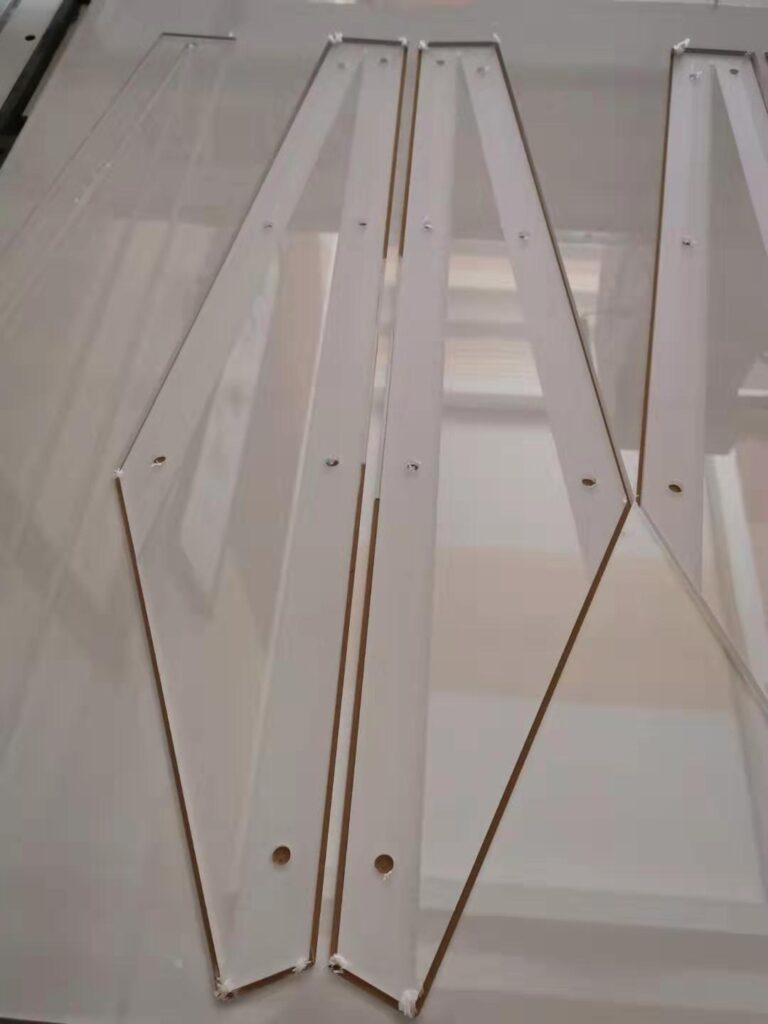

We offer comprehensive customization services including custom cutting to exact dimensions, edge finishing (polished, flame-polished, or routed), hole drilling for mounting hardware, and CNC machining for complex shapes. Our technical team provides free consultation to help select the optimal thickness and configuration for specific machine guard applications. With competitive factory-direct pricing, fast worldwide shipping, and dedicated after-sales support, we ensure that every customer receives the best value and service experience. All products come with a comprehensive warranty against manufacturing defects, giving you complete peace of mind for your factory safety investments.
