Interlocking Polycarbonate Panels for Modern Office Partitions — Durable, Lightweight & Cost-Effective
Modern office design demands flexibility, natural light, and cost-efficiency. Traditional partition materials like drywall and glass come with drawbacks — heavy installation, permanent structures, high costs, and limited reusability.
Interlocking polycarbonate panels offer a smarter solution for office space division. Combining the transparency of glass with the impact resistance of engineering plastics, these hollow multiwall panels create light-filled, adaptable workspaces at a fraction of the weight and cost of conventional options.
What Are Interlocking Polycarbonate Partition Panels?

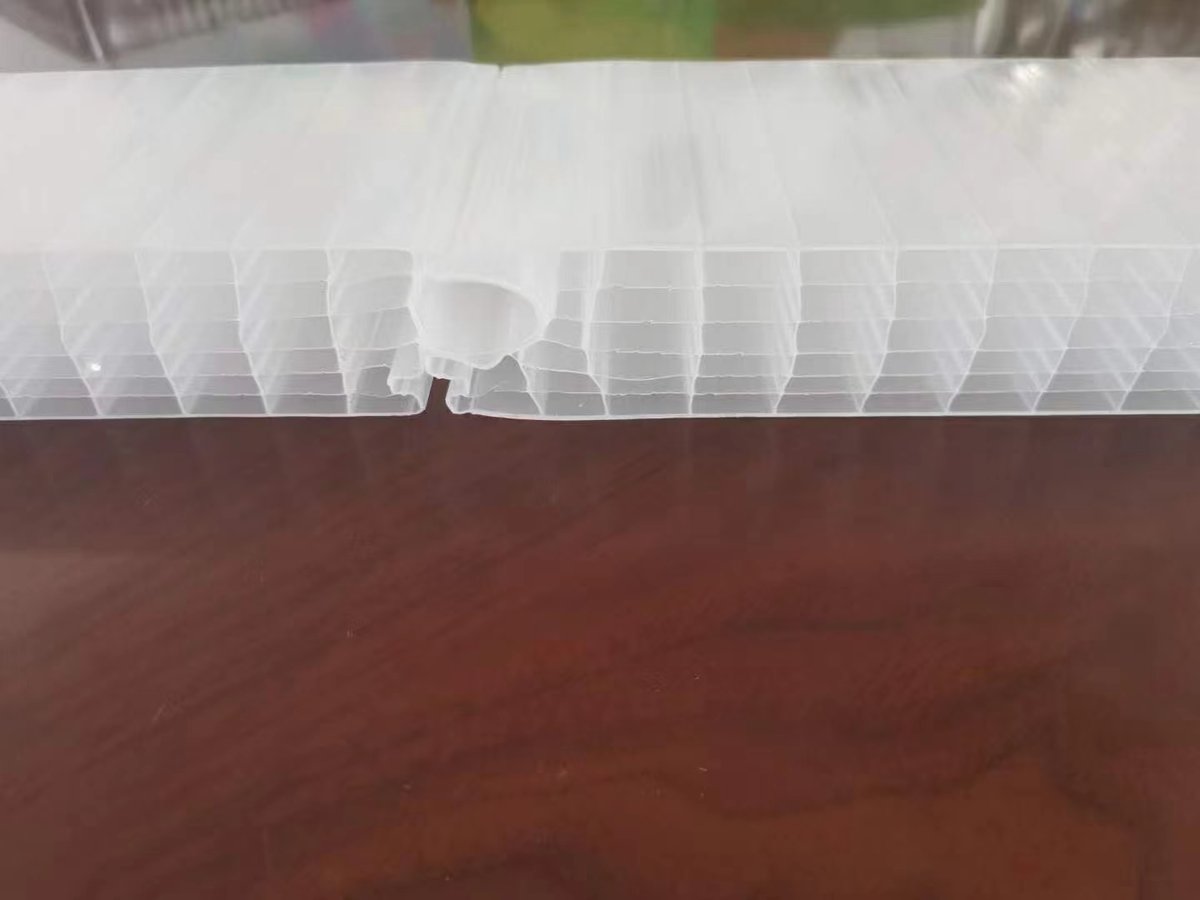

Interlocking polycarbonate panels are hollow multiwall sheets with a precision-engineered tongue-and-groove (male-female) edge profile. Each panel clicks into the next without adhesives or metal connectors, forming a seamless vertical partition wall.
Key structural features:
- Hollow multiwall construction — 7-layer honeycomb/multiwall core for strength-to-weight ratio

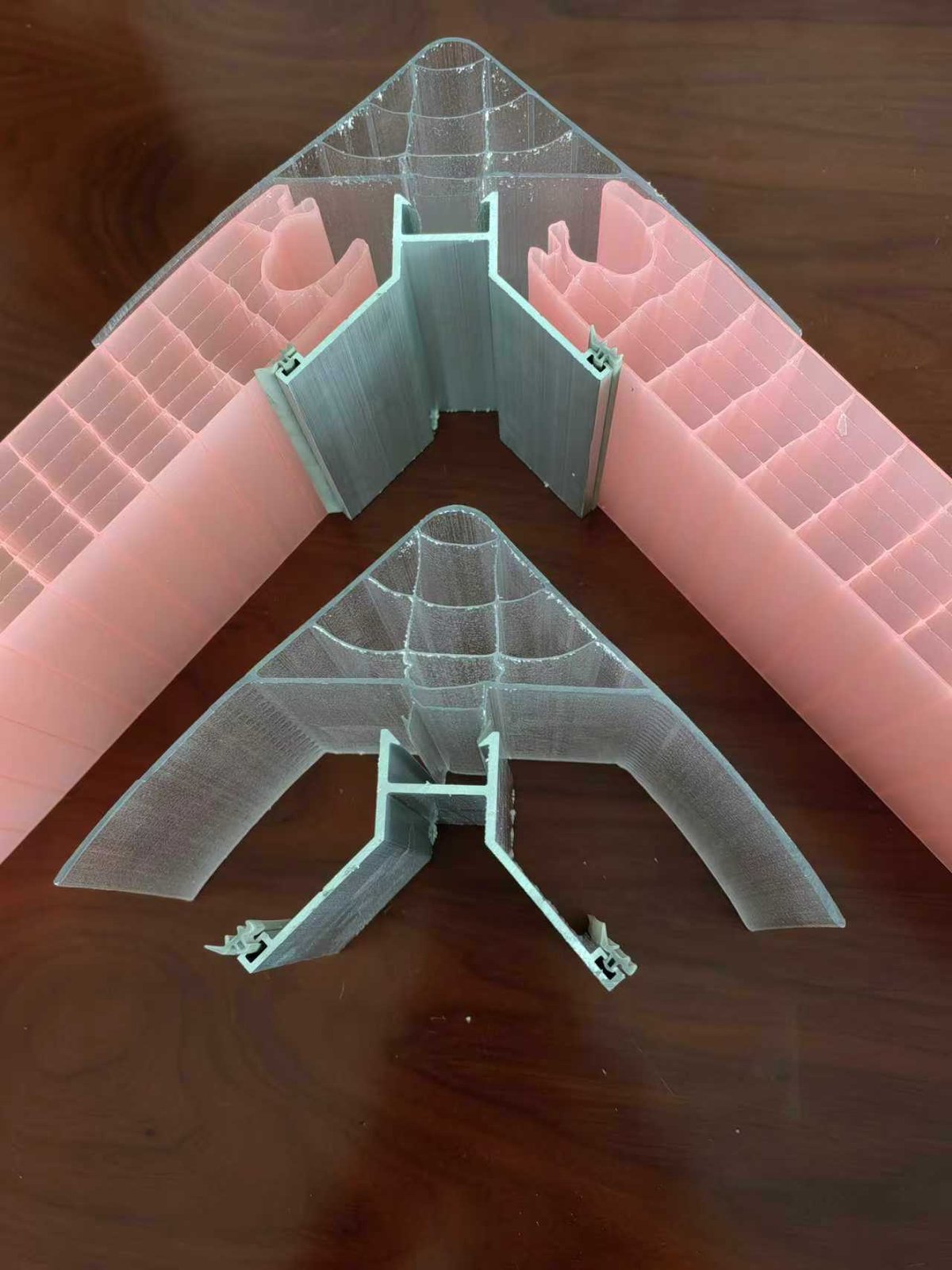

- Interlocking edge profile — male-female tongue-and-groove design for tool-free assembly
- UV-protected surface — co-extruded UV layer prevents yellowing (10-year warranty)
- Light transmission — up to 82% transparency, comparable to glass
- Thermal insulation — multiwall air pockets reduce heat transfer by up to 40%
5 Key Advantages for Office Partitions
1. Lightweight — 60% Lighter Than Glass
A standard 10mm thick interlocking PC panel weighs approximately 2.5 kg/m², compared to 25 kg/m² for 10mm glass. This drastically reduces structural load on office floors and ceilings, and makes handling during installation effortless.
2. Fast Installation — Tool-Free Assembly
The tongue-and-groove interlocking system requires no screws, adhesives, or metal frames. Panels simply click together, allowing a single worker to install up to 30 m² per day. Reconfiguration or removal is equally fast — panels unlock and detach cleanly.
3. Reconfigurable & Reusable
Unlike drywall (which creates dust and waste when removed) or glass (which is fragile and heavy), interlocking PC panels can be disassembled and reinstalled in a new layout. For growing companies that reorganize office space every 12-18 months, this translates to significant cost savings.
4. Light Diffusion — Privacy Without Sacrificing Light
While transparent glass creates glare and exposure, interlocking PC panels offer diffused light transmission. The honeycomb internal structure scatters incoming light, creating soft, evenly-lit spaces. Frosted and opal color options provide full visual privacy while maintaining brightness.
5. Impact Resistance — 200x Stronger Than Glass
Polycarbonate is virtually unbreakable in normal use. For office environments with high foot traffic, meeting rooms, or collaborative zones, interlocking PC panels offer safety without the risk of shattered glass.
Technical Specifications
| Parameter | Value |
| Panel Width | 500 mm |
| Available Thicknesses | 30 mm / 40 mm / 50 mm |
| Core Structure | 7-layer multiwall (honeycomb) |
| Custom Length | Up to 12,000 mm (custom cut) |
| Light Transmission | 62% – 82% (depending on color & thickness) |
| UV Protection | Co-extruded UV layer (10-year warranty) |
| Fire Rating | Class B1 (self-extinguishing) |
| Operating Temperature | -40°C to +120°C |
Available Colors & Finishes
- Clear — maximum light transmission, for open-plan zones
- Opal White — soft diffused light, for meeting rooms and private offices
- Frosted/Satin — visual privacy with light passage
- Blue, Green, Bronze — decorative accent partitions
- Custom RAL colors — available for branded office interiors

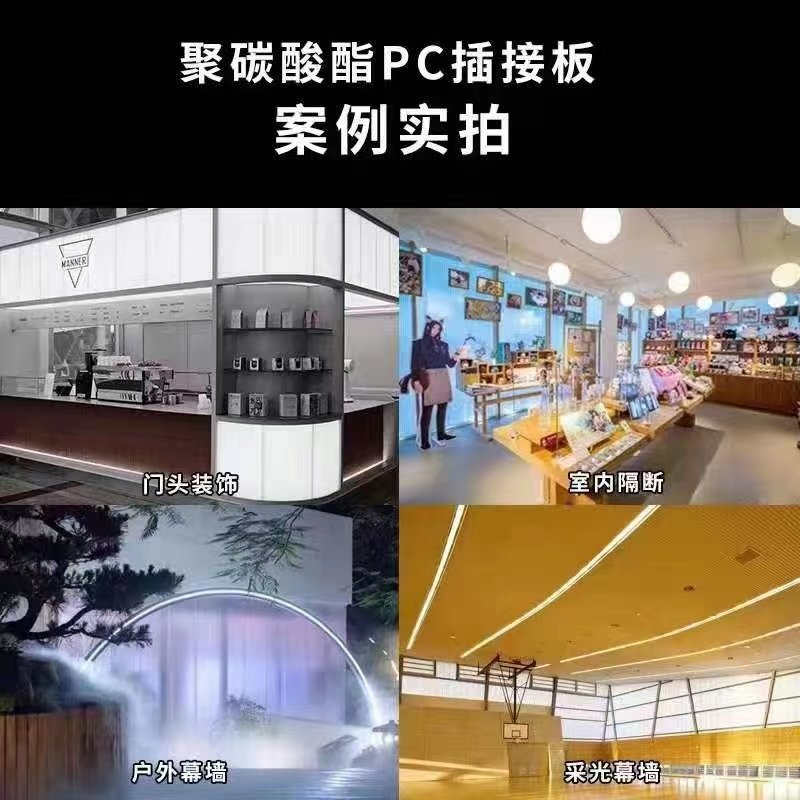

Where to Use Interlocking PC Office Partitions
| Application | Why It Works |
| Open-plan area dividers | Lightweight, repositionable, creates visual zones |
| Meeting room walls | Sound-dampening + privacy + glass-like transparency |
| Reception backdrops | Decorative, modern aesthetic, branding-friendly |
| Exhibition partitions | Modular, easy to install and dismantle |
| Clean room partitions | Non-dust, easy to clean, chemical resistant |
Interlocking PC Panels vs. Traditional Partition Materials
| Feature | Interlocking PC Panels | Glass Partitions | Drywall Partitions |
| Weight | ★★★★★ Lightest | ★★ Heavy | ★★★ Moderate |
| Installation Speed | ★★★★★ 1 day | ★★ 2-3 days | ★★ 2-3 days |
| Reusability | 100% reusable | Reuse difficult | 0% (demolished) |
| Impact Resistance | ★★★★★ 200x glass | ★ Fragile | ★★★ Moderate |
| Light Transmission | 62-82% | 85-90% | 0% |
| Sound Insulation | ★★★ Moderate | ★★ Low | ★★★★ Good |
| Cost per m² | $25-45 | $80-150 | $30-50 |
| Maintenance | Wipe clean | Streak-prone | Paint/repair |
Installation Process
- Prepare floor and ceiling tracks — aluminum U-channels fixed to floor and ceiling
- Insert first panel — place panel vertically into channels
- Interlock subsequent panels — slide each panel male edge into the previous panel female groove
- Seal joints — optional silicone gasket for acoustic sealing
- Cap the final edge — end cap profile for a finished look
No special tools, no adhesives, no waiting for drying time.
Customization Options
- Thickness: 30mm for standard partitions, 40mm for improved sound insulation, 50mm for premium acoustic performance
- Color: Clear, opal white, frosted, bronze, blue, green, or custom RAL
- Surface treatment: Anti-scratch coating, anti-static coating available
- Dimensions: Custom lengths to fit floor-to-ceiling heights up to 12m
- Accessories: Aluminum U-channels, rubber gaskets, end caps
Frequently Asked Questions
Q: Can interlocking PC panels provide sound insulation for meeting rooms?
A: Yes. 40mm and 50mm multiwall panels with sealing gaskets achieve sound reduction of up to 25-30 dB, suitable for small meeting rooms and quiet zones.
Q: Are these panels suitable for high-end office fit-outs?
A: Absolutely. With opal white and frosted finishes, interlocking PC panels are used in Grade A office buildings, co-working spaces, and corporate headquarters globally.
Q: Can I dismantle and reuse the panels?
A: Yes. The interlocking system is fully reversible. Panels can be removed and reinstalled in a new configuration with no material loss.
Q: How do I clean polycarbonate partition panels?
A: Clean with mild soap and water using a soft cloth. Avoid abrasive cleaners and ammonia-based products.
Why Choose Jintai (Jiete) New Material Technology Co., Ltd.?
- Factory-direct pricing — no middleman markup
- 10-year UV warranty on all polycarbonate panels
- Custom sizes & colors with fast turnaround
- Global shipping — exported to 30+ countries
- Free samples available for quality evaluation
Get a Quote
Interested in interlocking polycarbonate partitions for your office project? Contact our team for pricing, samples, and technical specifications.
We provide free layout consultation and installation guidance for bulk orders. Request a quote today and our sales team will respond within 24 hours.
