Why Interlocking Polycarbonate Panels Are the Smart Choice for Balcony Privacy
Urban living comes with a common challenge: how to enjoy your balcony without feeling exposed to neighbors or street traffic. Traditional solutions like solid walls block light and views, while glass offers no privacy. Interlocking polycarbonate panels provide the ideal middle ground — a durable, translucent barrier that filters light, blocks unwanted sightlines, and upgrades your balcony’s aesthetic.
Key Features for Balcony Privacy Applications
1. Translucent Privacy Without Sacrificing Light
Interlocking PC panels allow 20-82% light transmission depending on thickness and color. Your balcony stays bright and airy while passersby see only a soft, diffused outline. No heavy curtains, no dark walls — just natural light with visual comfort.
2. Robust Impact Resistance for Railing Infills
Polycarbonate is 200-250 times more impact-resistant than glass of the same thickness. Installed as railing infills or privacy screens, these panels withstand accidental impacts, wind-borne debris, and everyday use without cracking or shattering. Safety meets durability.

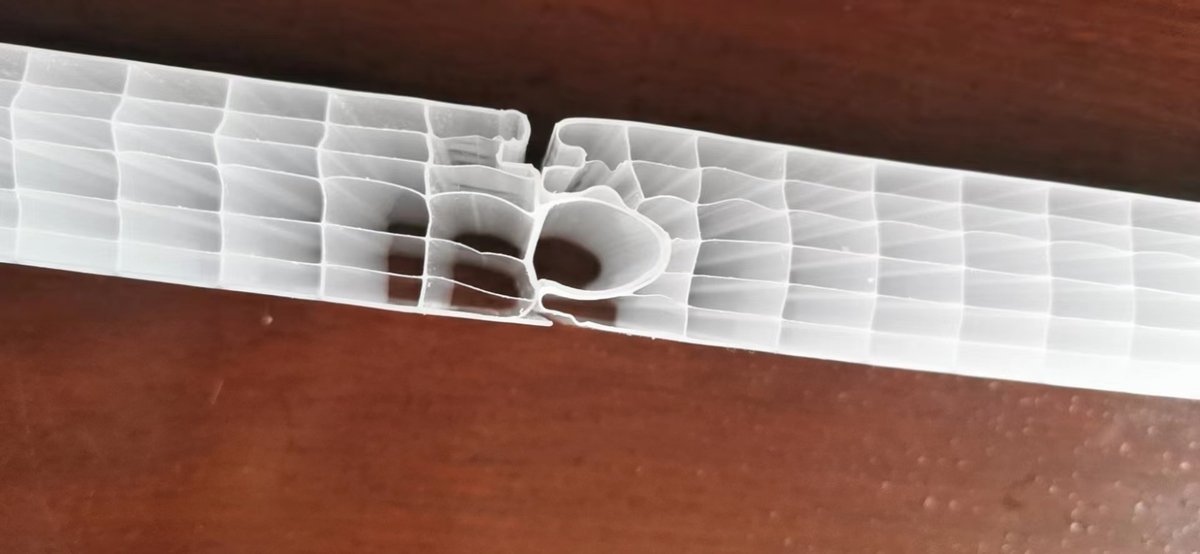

3. Tool-Free Interlocking Installation
The tongue-and-groove interlocking design eliminates the need for metal connectors or adhesives between panels. Panels simply slide together, creating a seamless barrier. Installation on balcony railings typically uses perimeter aluminum framing with EPDM gaskets for weather sealing.
4. Lightweight Yet Rigid Cellular Structure
With a multi-wall honeycomb core (3-layer to 9+ layers depending on thickness), interlocking panels deliver structural rigidity at a fraction of the weight of glass or metal alternatives. At just 2.0-8.0 kg/m², they place minimal load on balcony railings and supporting structures.
5. UV Protection and Weather Resistance
All panels feature co-extruded UV protection layers (30-50 microns on both sides), preventing yellowing and surface degradation over years of sun exposure. The material performs reliably from -40°C to +120°C, suitable for all climates.
Technical Specifications
| Parameter | Available Range |
|---|---|
| Width | 500 mm (standard) |
| Thickness | 10 mm, 12 mm, 16 mm, 20 mm, 25 mm, 30 mm, 40 mm, 50 mm |
| Structure | 3-layer → 5-layer X-brace → Honeycomb/Multi-cavity → 9-cavity |
| Length | 6 m standard; custom 1-12 m (up to 16.5 m available) |
| Weight | 2.0 – 8.0+ kg/m² (varies by thickness) |
| Light Transmission | 20 – 82% (depending on thickness and color) |
| U-Value (Insulation) | 0.71 – 3.5 W/m²·K |
| Fire Rating | B1 (GB 8624) / UL94 V-2 / Euroclass B-s1,d0 |
| Operating Temp | -40°C to +120°C |
| UV Protection | Co-extruded, 30-50 μm both sides |
| Colors | Clear, white, bronze, blue, green, grey, pink diffusion, glass grey diffusion, custom RAL |
Applications: Balcony Privacy Screens and Railing Infills
Residential Balcony Privacy Screens
Apartment dwellers and condo owners use interlocking panels to create private outdoor retreats. Panels mount on existing railing frames or as standalone screens between balconies, blocking sightlines while maintaining natural airflow and daylight.
Railing Infill Panels
When replacing glass or metal railing infills, interlocking PC panels offer a cost-effective upgrade. Their interlocking edges fit into standard U-channel or H-frame railing systems, creating a continuous, gap-free barrier that meets building safety codes.
Commercial and Hospitality Balconies
Hotels, restaurants, and office buildings use interlocking panels on terrace railings and balcony fronts for branded privacy screening. The panels accept digital printing or colored diffusion layers for customized visual identity.
Garden and Terrace Screens
Ground-floor balconies and terraces benefit from interlocking panels as windbreaks and visual barriers. The translucent material softens harsh winds while keeping the outdoor space connected to the garden view.
Why Choose Jietai as Your Interlocking Panel Supplier
- Trade sourcing expertise: We supply interlocking polycarbonate panels across the full industry range — not limited to a single factory’s production line. Get the right spec for your project.
- Custom sizes: Length custom from 1 m to 16.5 m; thickness from 10 mm to 50 mm. Color matching available (RAL).
- Complete accessory supply: Aluminum H-profiles, U-channels, EPDM gaskets, end caps, and sealing systems — all in one order.
- Sample service: Request physical samples to evaluate color, translucency, and panel structure before bulk ordering.
Frequently Asked Questions
Can interlocking panels be cut to custom sizes for balcony railings?
Yes. Interlocking panels can be cut to precise lengths using standard tools (circular saw with fine-tooth blade or jigsaw). Width is fixed at 500 mm, but multiple panels interlock side-by-side to cover any width.
Are these panels strong enough for high-rise balcony winds?
Yes. The multi-wall cellular structure provides excellent wind load resistance. For high-rise applications, panels are typically installed within aluminum framing systems with proper fastening intervals. Our technical team can provide wind load calculations for your specific project.
How do interlocking panels compare to glass for balcony infills?
Interlocking PC panels are lighter (2.0-8.0 kg/m² vs ~10-15 kg/m² for glass), more impact-resistant (200-250x glass), and offer built-in privacy without tinting or frosting. They also cost significantly less than tempered glass systems.
Can the panels be removed or replaced easily?
Yes. The interlocking design means individual panels can be slid out and replaced without dismantling the entire installation — ideal for balcony renovation or future maintenance access.
What colors are available for balcony privacy screens?
Standard options include clear, white, bronze tint, blue, green, grey, pink diffusion, and glass grey diffusion. Custom RAL colors are available for volume orders. White and diffusion colors are most popular for privacy applications as they offer the best balance of light transmission and visual screening.
Do these panels meet fire safety requirements for residential buildings?
Yes. Our interlocking panels carry B1 fire rating (Chinese standard GB 8624), UL94 V-2, and Euroclass B-s1,d0. These ratings are suitable for residential balcony applications. Always verify with your local building authority for specific fire code requirements.
Get a Quote for Your Balcony Privacy Project
Ready to upgrade your balcony with interlocking polycarbonate privacy screens? Contact our team for pricing, technical specifications, and sample requests. We supply throughout North America, Europe, Southeast Asia, and the Middle East.
Contact our team for a quote — tell us your balcony dimensions and preferred panel thickness, and we’ll respond with a complete solution including panels, accessories, and installation guidance.
