When a residential community developer in Southeast Asia needed a durable, light-transmitting roofing solution for a series of carports and walkway canopies, they turned to corrugated polycarbonate sheets from Jietai. The project required materials that could withstand tropical heat, heavy monsoon rains, and intense UV exposure while maintaining a clean, modern aesthetic that complemented the residential architecture.
Project Overview
This project involved the installation of corrugated polycarbonate roofing across 12 residential carports and connecting pedestrian walkways within a gated community. The total covered area spanned approximately 450 square meters, requiring a material that balanced cost-efficiency with long-term durability.
Key Project Parameters:
- Location: Southeast Asia (tropical climate)
- Coverage Area: ~450 m2
- Material: Corrugated Polycarbonate Sheets (840-type)

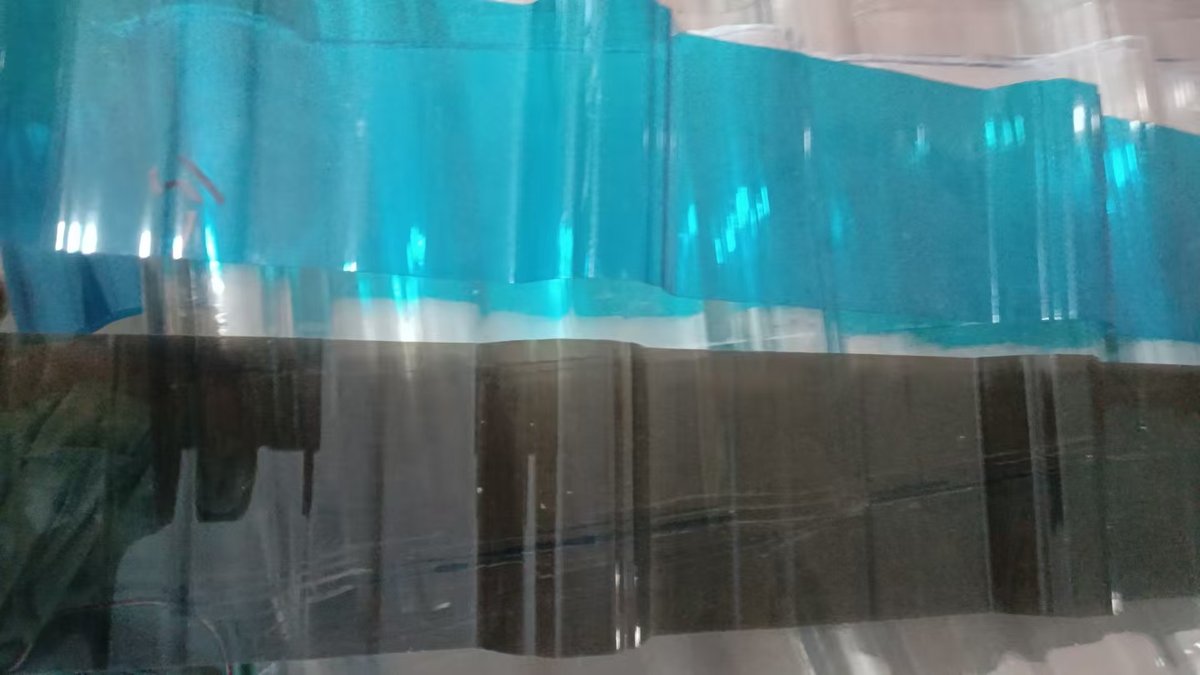

- Colors Used: Transparent and blue-tinted
- Support Structure: Galvanized steel framework
- Completion: 4 weeks
The Challenge
The developer faced several constraints when selecting the roofing material for these carports and canopies:
- Climate Resistance: The tropical environment meant constant exposure to UV radiation, heavy rainfall, and temperatures exceeding 35C. Traditional metal roofing would absorb heat and create uncomfortable conditions underneath.
- Natural Lighting: The carports needed adequate daytime illumination without additional electrical lighting, reducing long-term energy costs for residents.
- Aesthetic Integration: As part of a premium residential community, the roofing had to look clean and modern — not industrial or utilitarian.
- Budget Efficiency: With 12 individual structures to cover, the developer needed a cost-effective material that would not require extensive custom fabrication.
Why Corrugated Polycarbonate Sheets?
After evaluating multiple options including PVC panels, metal sheets, and tempered glass, the project team selected corrugated polycarbonate sheets for several decisive reasons:
1. Superior Light Transmission
Corrugated polycarbonate sheets provide 80-88% light transmission in transparent grades, delivering excellent natural illumination to the parking bays and walkways. This eliminated the need for artificial lighting during daytime hours, reducing ongoing electrical costs for the community.
2. Impact and Weather Resistance
Polycarbonate is approximately 200 times stronger than glass and significantly more impact-resistant than PVC or acrylic alternatives. In a tropical climate prone to occasional hailstorms and wind-driven debris, this impact resistance ensures long-term structural integrity without cracking or shattering.
3. UV Protection with Co-Extruded Layer
All Jietai corrugated polycarbonate sheets feature a co-extruded UV protective layer on the weather-facing side. This prevents yellowing, hazing, and embrittlement over years of sun exposure — a critical requirement for outdoor structures in equatorial regions.
4. Lightweight and Easy Installation
At approximately 1.2-1.7 kg/m2 depending on thickness, corrugated polycarbonate sheets are far lighter than glass or metal alternatives. This reduced the structural load requirements for the support framework and allowed the installation team to complete all 12 structures within the 4-week timeline.
Material Specifications
The corrugated polycarbonate sheets supplied for this project conform to the following specifications:
| Parameter | Specification |
|---|---|
| Sheet Type | Corrugated Polycarbonate, 840-type profile |
| Thickness | 1.2mm and 1.5mm |
| Available Widths | 840mm, 900mm, 930mm, 950mm, 1050mm (effective coverage) |
| Available Thickness Range | 0.8mm – 3.0mm |
| Color Options | Transparent, lake blue, grass green, bronze, opal white |
| Light Transmission | 80-88% (transparent grade) |
| UV Protection | Co-extruded UV layer, single side |
| Fire Rating | B1 (UL94 V-0 to V-2) |
| Temperature Range | -40C to +120C |
| Profile Compatibility | Matches standard color steel sheet profiles |
| Custom Sizes | Available upon request |
Installation Highlights
The installation followed a systematic approach optimized for the 840-type corrugated profile:
- Framework Preparation: Galvanized steel purlins were installed at 1.0-1.2m spacing to match the sheet span capacity.
- Sheet Cutting: Panels were cut to length on-site using fine-tooth circular saws — polycarbonate cuts cleanly without cracking or splintering.
- Fastening: Self-drilling screws with EPDM washers were driven into the crown of each corrugation at 300-400mm intervals, ensuring water-tight seals.
- Overlap: Sheets were overlapped by one full corrugation on the side laps and 200mm on end laps, with UV-resistant sealing tape applied to prevent capillary water ingress.
- Edge Finishing: Aluminum U-channels were fitted along exposed edges to prevent wind uplift and provide a clean visual finish.
Results and Client Feedback
The completed project delivered all of the client key requirements:
- 100% natural daytime lighting in all carports — no electrical lighting needed between dawn and dusk
- Effective weather protection — vehicles and pedestrians remain completely dry during heavy tropical downpours
- Significant cost savings vs. glass (approximately 60% lower material + installation costs) and vs. metal roofing (eliminated ongoing lighting electricity costs)
- Zero maintenance in the first 12 months — no yellowing, cracking, or fastener loosening observed
- Aesthetic approval — the clean, modern look of the translucent roofing received positive feedback from residents and property management alike
Broader Applications
While this project focused on residential carports and canopies, corrugated polycarbonate sheets from Jietai serve a wide range of outdoor shelter applications:
- Factory Skylights and Daylighting: Replace select metal roof panels with translucent polycarbonate to flood industrial interiors with natural light
- Agricultural Shelters: Poultry houses, livestock barns, and greenhouse roofing benefit from the material light transmission and thermal properties
- Walkway and Corridor Covers: Connect buildings with weatherproof, naturally-lit pedestrian corridors
- Commercial Canopies: Restaurant patios, market stalls, and outdoor retail spaces
Why Source Corrugated Polycarbonate Sheets from Jietai?
Jietai delivers corrugated polycarbonate sheets that meet international quality standards at competitive trade pricing. Our supply chain advantages include:
- Full Profile Range: 840, 900, 930, 950, and 1050-type profiles available — matching all major color steel sheet standards
- Thickness Options: From 0.8mm economy grade to 3.0mm heavy-duty — we help you select the right specification for your climate and load requirements
- Color Selection: Transparent, lake blue, grass green, bronze, and opal white — with custom RAL colors available for volume orders
- UV Guarantee: All sheets feature genuine co-extruded UV protection, not surface-sprayed coatings that degrade within months
- Custom Cut-to-Length: Reduce on-site waste with sheets pre-cut to your project exact dimensions
Contact our team for a quote on your next carport, canopy, or daylighting project. We provide technical datasheets, installation guides, and sample swatches to support your specification process.
