Overview
For plant managers and safety engineers specifying machine guarding in 2026, clear solid polycarbonate sheet is the most practical glazing: it stops flying debris and impact roughly 200–250 times better than glass, yet stays 88–89% transparent so operators can watch every cycle without opening a guard. Jietai — as a manufacturer of solid polycarbonate sheet — supplies this glazing in thicknesses from 1 mm to 30 mm, cut, drilled, and thermoformed to fit guarding frames, enclosures, and protective screens for metal processing plants, stamping lines, and automated production cells.
1. Transparent guarding for rolling and coil processing lines
A steel processing plant needed clear guarding around its rolling and coil-handling line. Operators had to monitor the strip at all times, but steel mesh blocked the view and thin acrylic cracked after a few weeks of impact from scale and small parts. Our factory supplied 4 mm clear solid polycarbonate panels, cut to frame size and drilled for the existing posts. The guards keep visibility fully open while absorbing the day-to-day impacts that would shatter glass.

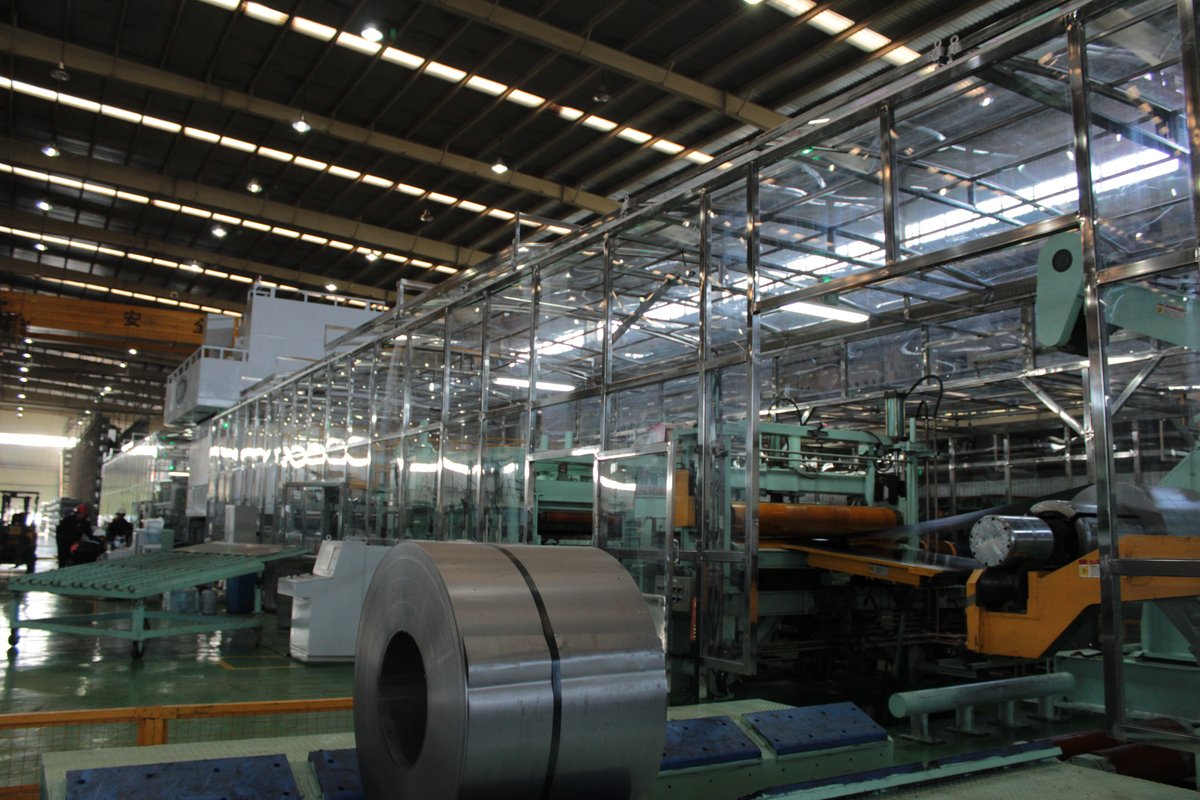

2. Full enclosures for automated production lines
On an automated metal-processing line with an overhead crane, the requirement was a full transparent enclosure rather than a single fence. We supplied larger clear solid polycarbonate panels mounted into a steel frame, forming a walk-around enclosure that contains chips, coolant spray, and noise while letting operators and supervisors see the machinery from outside. Because solid polycarbonate fabricates cleanly, each panel was cut, edge-finished, and drilled on site to match the frame exactly.
3. Large-format guards for heavy equipment
For the biggest equipment, large-format solid polycarbonate guards up to 2,500 mm wide give a single-piece viewing window without the joints of multi-panel assemblies. The photo above shows a full-height guard at a steel plant, with an operator for scale — the panel spans the whole machine face, so maintenance crews and operators can see the entire process area while staying fully protected.
Technical specifications (solid polycarbonate sheet)
| Parameter | Range |
|---|---|
| Thickness | 1, 1.5, 2, 3, 4, 5, 6, 8, 10, 12, 15, 20, 25, 30 mm |
| Standard width | 1220 / 1560 / 1820 / 2100 mm (custom up to 2500 mm) |
| Standard length | 6 m (custom 1–12 m, rolls up to 30 m) |
| Light transmission | Up to 89% (clear) |
| Impact strength | 200–250× glass |
| Flexural strength | ≥90 MPa |
| Tensile strength | ≥60 MPa |
| Flame behaviour | Self-extinguishing |
| UV protection | Co-extruded UV layer, single or double side |
Why solid polycarbonate for machine guarding
Solid polycarbonate brings together the four properties a machine guard must have: impact resistance (200–250× glass, and a 2 mm panel stops a 1 kg steel ball dropped from 1 m), clarity (88–89% light transmission, comparable to glass), fabricability (cutting, drilling, milling, and thermoforming on standard tools), and fire safety (self-extinguishing). Unlike acrylic, it does not crack under repeated impact, and unlike laminated glass it is far lighter and easier to mount and replace.
Frequently asked questions
What thickness of solid polycarbonate should I use for a machine guard?
Most machine guarding uses 4–10 mm clear sheet; 4 mm is standard for enclosing lines where operators only need to see the process, while 8–10 mm is used for heavy-impact areas such as stamping, grinding, and CNC cells. For the highest-impact zones, 12 mm and thicker panels are available.
Is solid polycarbonate safer than glass for machine guards?
Yes. Solid polycarbonate is roughly 200–250 times more impact-resistant than glass and, unlike glass, it does not shatter into sharp shards on impact. When it eventually fails under extreme load it deforms rather than fragmenting, which is why it is the standard choice for machine guarding and safety shielding.
Can I still see the machine clearly through the guard?
Yes. Clear solid polycarbonate transmits up to 89% of light — close to glass — so operators can watch the full cycle without opening the guard. This keeps production running safely and avoids the stop-and-check time that opaque guards force.
Can the panels be cut and drilled to fit my existing frame?
Yes. Solid polycarbonate is easy to fabricate with standard tools — it can be cut, edge-finished, drilled, and thermoformed to match your frame exactly. Send us your frame dimensions and we will supply panels cut to size.
Do the guards yellow or weaken under factory light or outdoors?
No. Our solid polycarbonate carries a co-extruded UV protection layer (single or double side) that prevents yellowing and embrittlement, so the panels keep their clarity and strength through years of factory use. A 10-year light-transmission warranty is typical for this product line.
Why Jietai
Jietai is a manufacturer of solid polycarbonate sheet with in-house extrusion and fabrication. We supply machine-guard panels cut to size, edge-finished and drilled, in clear or tinted options, with UV protection and fire-rated grades on request. Contact our team for a quote on your guarding project — tell us the panel size, thickness, and quantity and we will recommend the right specification.
