U-Lock Polycarbonate Roofing System for Agricultural Greenhouses — Durable, Leak-Proof, and Light-Optimized
Agricultural greenhouses demand roofing materials that balance three critical requirements: maximum light transmission for crop growth, absolute waterproofing to protect sensitive plants, and structural durability against wind, snow, and hail. The U-Lock polycarbonate roofing system delivers on all three fronts with its innovative interlocking design that eliminates exposed fasteners and creates a completely sealed roof surface. Unlike traditional screw-fixed PC panels or glass greenhouses, the U-Lock system provides superior thermal insulation, impact resistance up to 250 times that of glass, and a zero-leak guarantee that keeps your growing environment consistently controlled.
Designed specifically for large-span agricultural structures, U-Lock panels reduce installation time by up to 40% compared to conventional roofing methods while offering unmatched longevity with 10+ years of UV protection. Whether you operate a commercial vegetable greenhouse, a flower nursery, or a research hydroponics facility, this roofing system provides the optimal combination of light diffusion, temperature regulation, and structural integrity that modern agriculture requires.
Key Features of U-Lock Polycarbonate Greenhouse Roofing

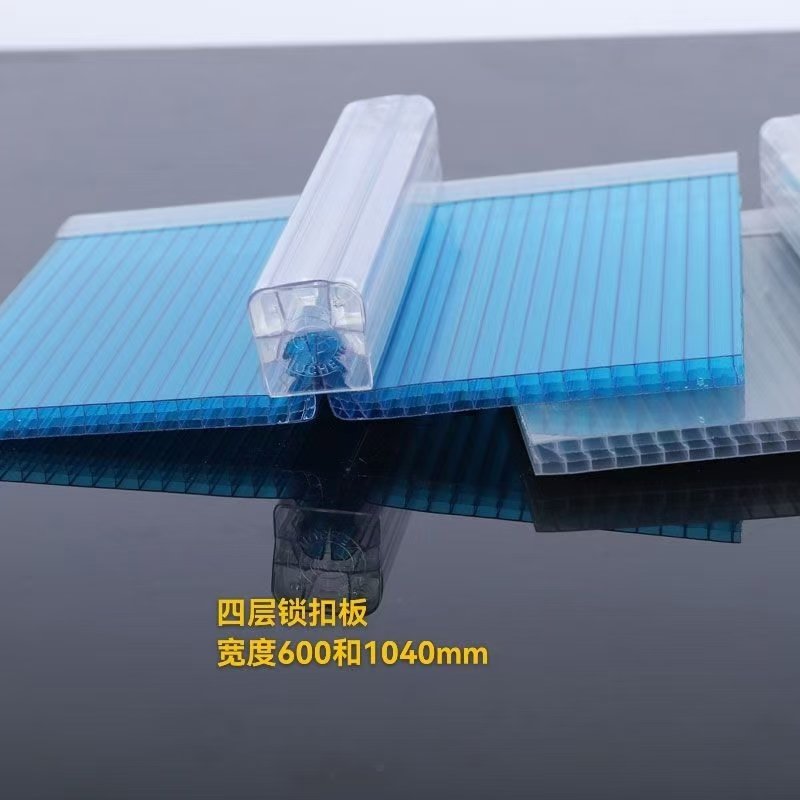

Innovative U-Lock Interlocking System: Each panel features a precision-engineered male-female locking profile that clicks securely into the adjacent panel without screws or exposed fasteners. This creates a four-layer sealed joint that remains completely watertight even under heavy rain or snow melt runoff. The interlocking design also accommodates thermal expansion and contraction, preventing warping or gap formation over temperature cycles.
Superior Light Transmission and Diffusion: Clear U-Lock panels offer light transmission up to 88%, maximizing natural sunlight penetration for photosynthesis. The multi-wall structure diffuses direct sunlight, reducing harsh shadows and hot spots that can damage sensitive crops. This diffused light reaches lower plant canopies more evenly, improving overall crop yield and quality.
Exceptional Impact and Weather Resistance: Polycarbonate is 250 times stronger than glass and 30 times stronger than acrylic. U-Lock panels withstand hail up to 45mm diameter, heavy snow loads, and wind speeds exceeding 120 km/h. The co-extruded UV-resistant layer prevents yellowing and degradation for a minimum of 10 years, maintaining optical clarity throughout the greenhouse’s operational life.
Thermal Insulation Performance: The multi-wall hollow structure provides natural thermal insulation with U-values as low as 2.5 W/m²K for 16mm panels and 1.9 W/m²K for 25mm+ panels. This reduces heating costs in winter by up to 30% compared to single-skin glass or film greenhouses, while minimizing overheating in summer through effective heat dissipation.
Lightweight and Easy to Install: At just 2.0–4.5 kg/m² depending on thickness, U-Lock panels are significantly lighter than glass (10–15 kg/m²) or acrylic. The interlocking system allows two workers to install 100+ m² per day without heavy lifting equipment. Panels fit standard greenhouse aluminum framing with compatible U-Lock accessories.
Technical Specifications
| Parameter | Available Range |
|---|---|
| Panel Width | 600 mm, 1040 mm (custom widths available on request) |
| Panel Thickness | 6 mm – 40 mm (6, 8, 10, 12, 16, 20, 25, 30, 35, 40 mm) |
| Standard Length | 5.8 m, 6.0 m, 11.8 m, 12.0 m (custom lengths up to 16.5 m available) |
| Structure | U-Lock hollow multi-wall (twin-wall, triple-wall, 5-wall, 7-wall options) |
| Light Transmission | Clear: 82%–88% | Opal White: 45%–60% | Tinted Colors: 20%–50% |
| Thermal Insulation (U-value) | 2.5 – 3.5 W/m²K (16 mm) | 1.9 – 2.5 W/m²K (25 mm) | 1.5 – 1.9 W/m²K (40 mm) |
| Impact Resistance | 250× stronger than glass (EN ISO 6603 certified) |
| Temperature Range | −40°C to +120°C continuous service |
| UV Protection | Co-extruded UV-resistant layer on both sides — 10+ year warranty |
| Fire Rating | B-s1,d0 (EN 13501-1) — self-extinguishing, low smoke emission |
| Weight | 2.0 – 4.5 kg/m² (varies by thickness and wall structure) |
| Colors | Clear, Opal White, Bronze, Blue, Green, Grey — custom colors upon request |
Applications in Agricultural Greenhouses
U-Lock polycarbonate roofing is ideal for a wide range of agricultural greenhouse applications, from small family farms to large commercial growing operations spanning multiple hectares.
Commercial Vegetable Greenhouses: Large-span structures growing tomatoes, cucumbers, peppers, and leafy greens benefit from the uniform light diffusion that reduces leaf burn and promotes even ripening. The thermal insulation properties extend growing seasons by 4–6 weeks in temperate climates without additional heating.
Flower and Ornamental Nurseries: Light-sensitive flowers such as orchids, roses, and chrysanthemums require precisely controlled light levels. U-Lock panels are available in opal white and tinted options that reduce light intensity by 20%–55% while maintaining excellent uniformity, eliminating the need for external shade cloths.
Hydroponic and Aquaponic Facilities: Controlled-environment agriculture demands consistent light, temperature, and humidity. The U-Lock system’s sealed joints prevent condensation drips that can contaminate nutrient solutions, while the thermal performance maintains optimal root zone temperatures year-round.
Seedling and Propagation Houses: Young plants require high humidity and gentle light conditions. The diffused light through U-Lock multi-wall panels creates ideal germination environments, and the leak-proof construction maintains stable humidity levels without drafts.
Installation and Structural Benefits

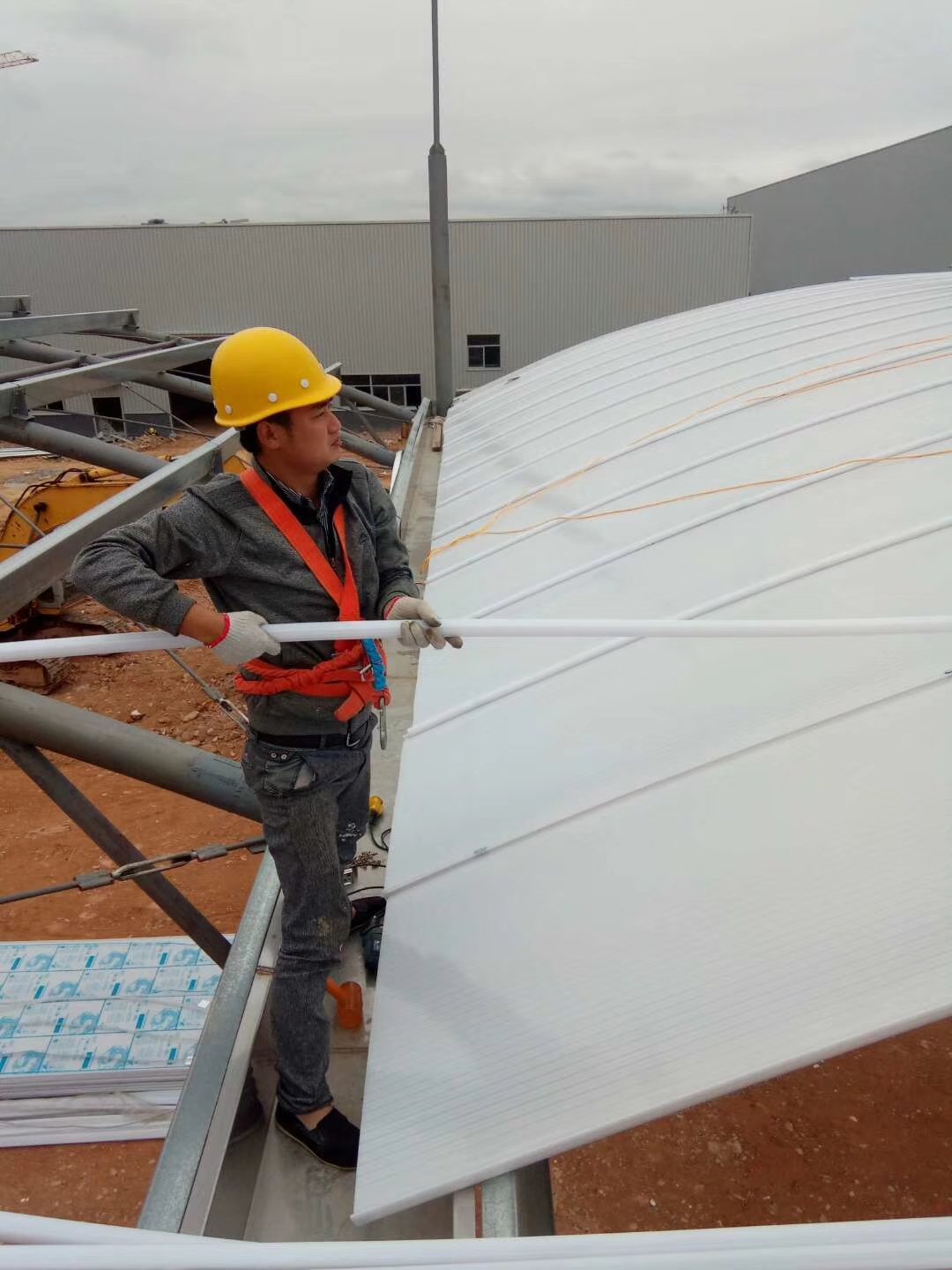

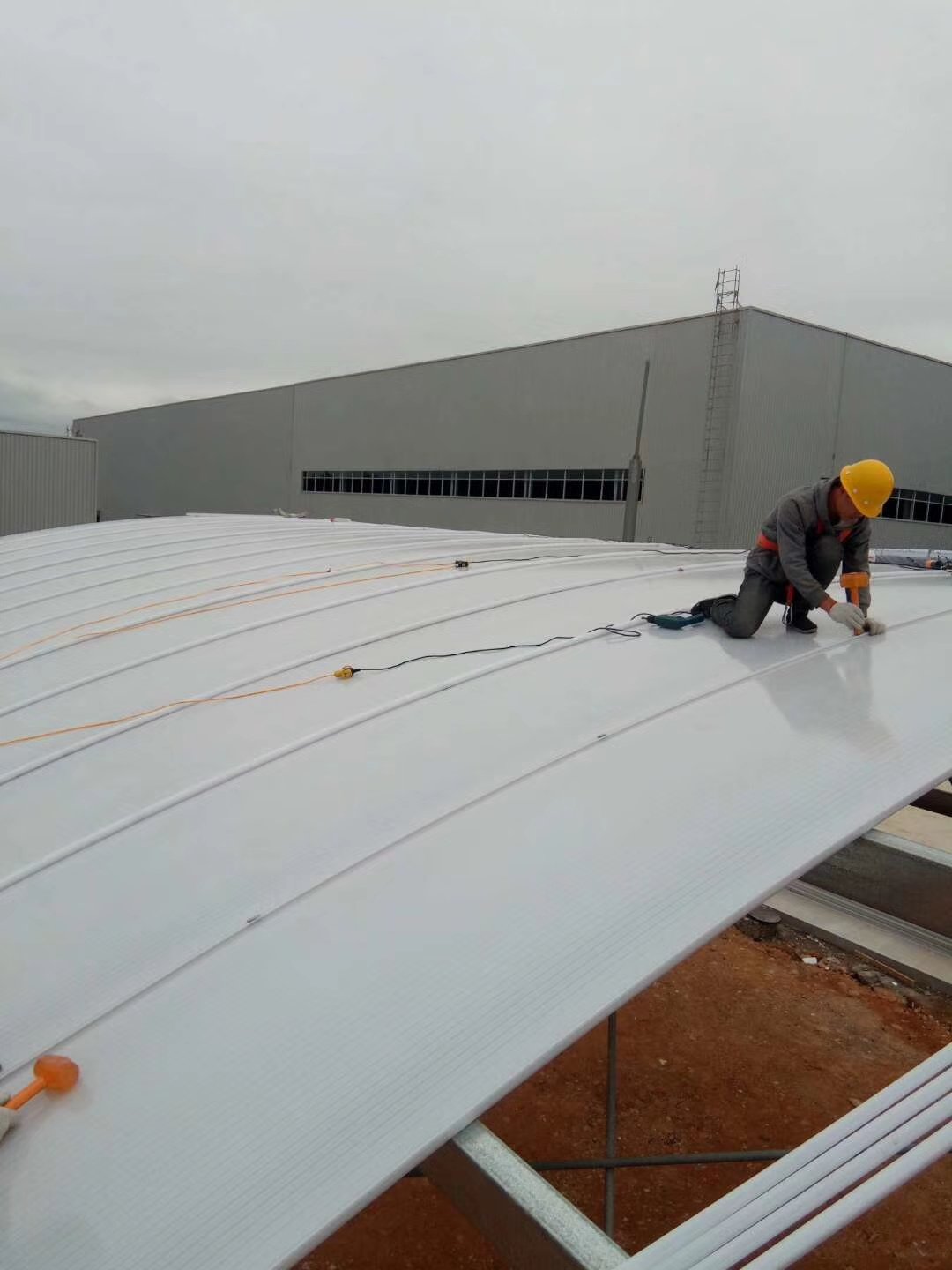

The U-Lock system significantly simplifies greenhouse construction compared to traditional roofing methods. Panels are installed by simply sliding the male profile of one panel into the female channel of the adjacent panel, creating an instantaneous weather-tight seal. No sealants, gaskets, or screws are required on the panel surface, eliminating the most common source of roof leaks in conventional polycarbonate installations.
The system integrates seamlessly with standard greenhouse aluminum framing profiles. Pre-drilled aluminum fixing clamps secure the panels at 600–1000 mm centers, with self-tapping screws attaching to the substructure. Expansion gaps of 3–5 mm per meter are built into the design to accommodate thermal movement without compromising the seal.

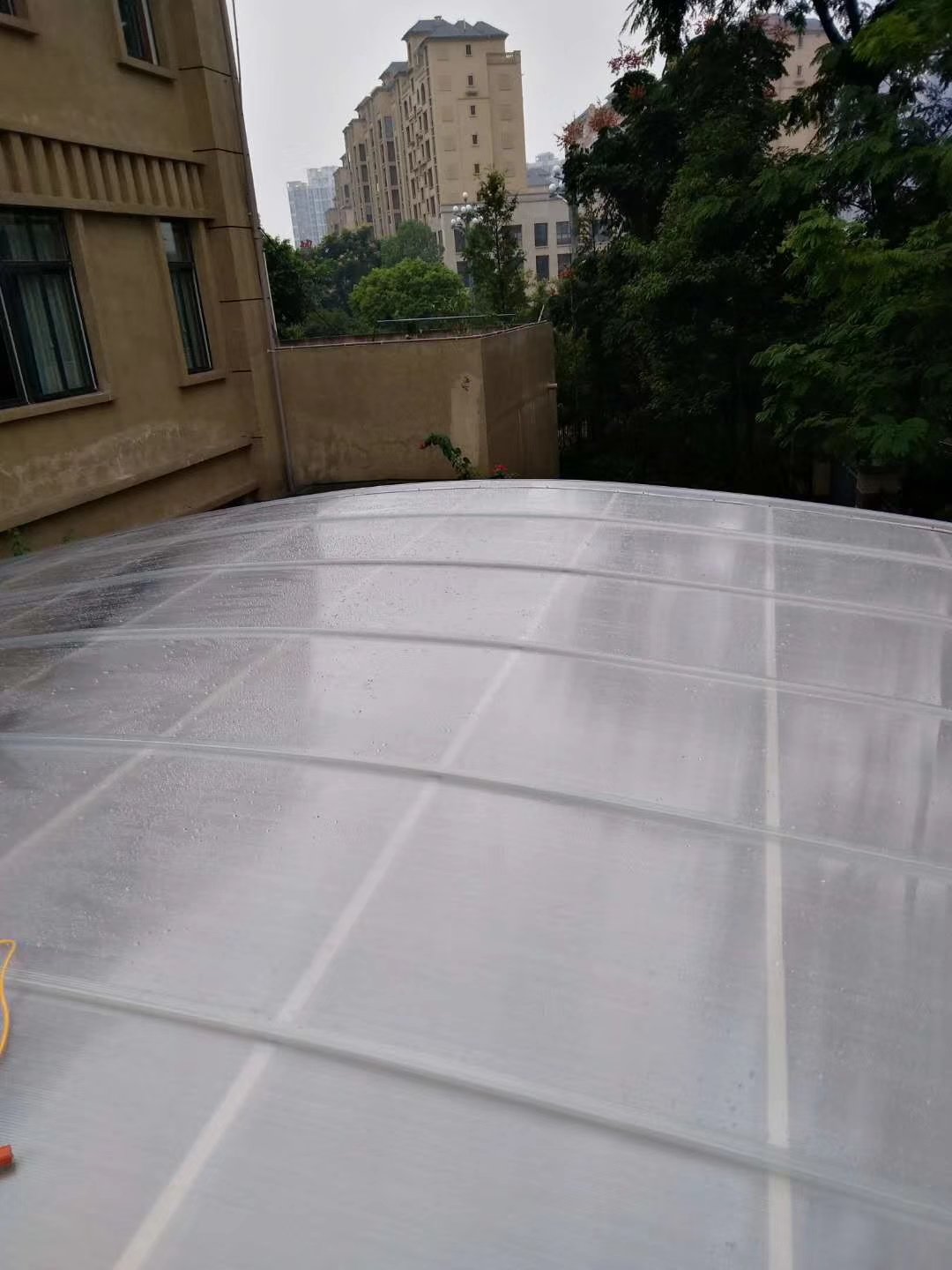

Key installation advantages include: reduced labor costs (40% fewer man-hours versus screw-fixed panels), no specialized tools required, simple replacement of individual panels without disturbing adjacent sections, and compatibility with curved and arched greenhouse designs down to 6-meter radius.
Why Choose Jietai U-Lock Polycarbonate Greenhouse Roofing?
Jietai New Materials Technology Co., Ltd. has been supplying premium polycarbonate roofing solutions to agricultural projects worldwide since 2016. Our U-Lock panels are manufactured from 100% virgin polycarbonate resin sourced from leading global petrochemical suppliers, ensuring consistent quality, optical clarity, and long-term UV stability.
Every batch undergoes rigorous quality testing including impact resistance (EN ISO 6603), light transmission spectrometry (ASTM D1003), UV accelerated weathering (ASTM G154), and thermal cycling tests. We provide comprehensive technical support including structural load calculations, installation drawings, and on-site guidance for large greenhouse projects.
Custom sizes, colors, and thicknesses are available for specialized agricultural applications. Contact our team for a quote and consult with our greenhouse roofing specialists to determine the optimal U-Lock specification for your growing operation.
