Advertising light boxes and storefront signs require materials that combine durability, light diffusion, and visual appeal. Interlocking polycarbonate panels offer an ideal solution for sign fabricators and building owners seeking a lightweight, weather-resistant alternative to traditional glass or acrylic signage substrates.
Why Interlocking PC Panels for Signage?
Polycarbonate interlocking panels deliver several advantages when used as the facing material for illuminated signs and storefront displays:

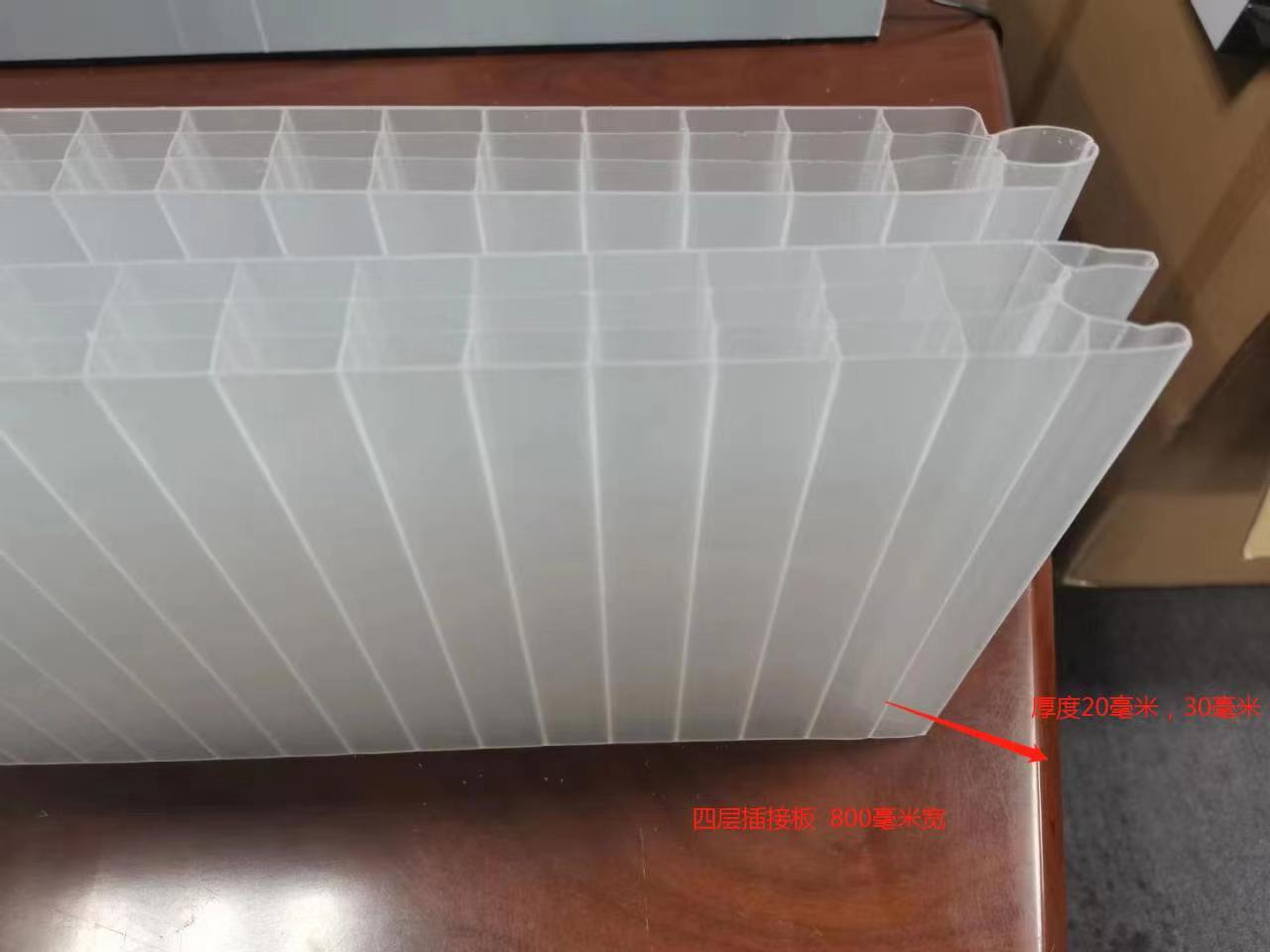

- Superior Light Diffusion — The multi-wall cellular structure evenly distributes backlighting, eliminating hotspots and creating a uniform illuminated surface ideal for lightbox signs.
- Impact Resistance — Polycarbonate is 250 times stronger than glass and 30 times stronger than acrylic, making it highly resistant to breakage from vandalism, weather debris, or accidental impact in high-traffic commercial areas.
- UV Protection — Co-extruded UV-resistant layers prevent yellowing and degradation over years of outdoor exposure, maintaining clarity and color stability for long-term signage installations.
- Lightweight Construction — At approximately half the weight of glass and 30% lighter than solid acrylic, interlocking panels reduce structural load requirements and simplify installation on building facades.
- Weather Resistance — Rated for temperatures from -40°C to 120°C, these panels withstand extreme heat, cold, humidity, and UV exposure without warping or cracking.
- Color Variety — Available in transparent, translucent white, bronze, blue, green, yellow, and custom colors to match brand identity and signage requirements.
Technical Specifications
| Property | Value |
|---|---|
| Panel Width | 500 mm (standard interlocking module) |
| Panel Thickness | 30 mm, 40 mm, 50 mm (7-layer honeycomb structure) |
| Standard Length | 6,000 mm (custom lengths available up to 12,000 mm) |
| Light Transmission | 30% – 70% depending on color and thickness |
| U-Value | 1.8 – 2.5 W/m²·K |
| Operating Temperature | -40°C to +120°C |
| Fire Rating | B1 (DIN 4102) / Class 1 (BS 476) |
| UV Protection | Co-extruded UV layer on exposed side |
Applications in Signage & Advertising
Backlit Light Box Signs
The translucent multi-wall structure of interlocking PC panels provides exceptional light diffusion, making them an excellent face material for backlit cabinet signs. LED or fluorescent lighting placed behind the panel produces a soft, even glow without visible light spots or shadows.

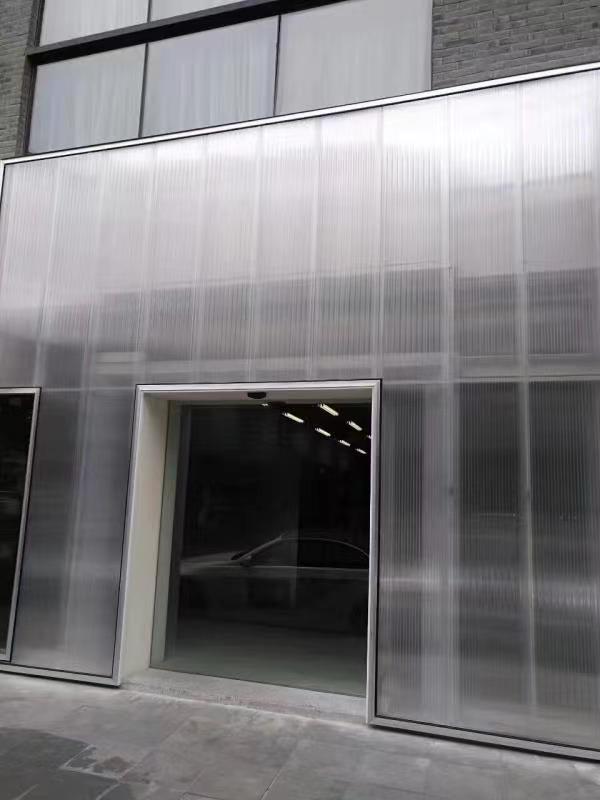

Storefront Facade Signs
For retail storefronts, shopping malls, and commercial buildings, interlocking panels create clean, modern sign faces that can be illuminated from behind or used as non-illuminated brand panels. The interlocking joint system eliminates visible seams for a professional, continuous appearance.
Channel Letter Backing
When used as the backing material for channel letter signs, interlocking PC panels provide a durable, weatherproof substrate that supports letter mounting while allowing light transmission for halo-lit effects.
Retail Displays & POP Signage
Temporary or permanent point-of-purchase displays benefit from the lightweight, easy-to-cut nature of interlocking panels. Their smooth surface accepts vinyl graphics, direct printing, and paint for customized promotional signage.
Exhibition & Event Signage
Trade show booths and event signage require quick assembly and striking visuals. Interlocking panels can be rapidly installed and disassembled without specialized tools, making them ideal for temporary branding installations.
Installation Advantages

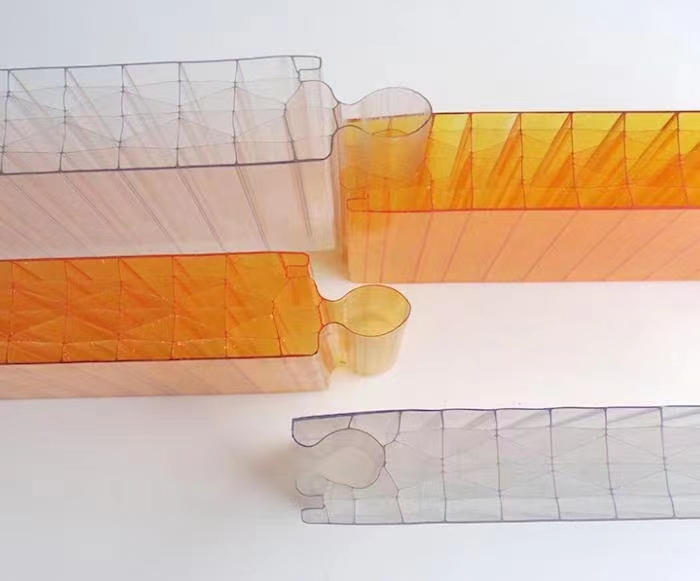

The interlocking design eliminates the need for visible fasteners or adhesive joints. Panels click together securely using the integrated tongue-and-groove profile, creating a water-resistant seal that protects internal lighting components. The system can be installed directly onto aluminum framing or existing building substructures using standard mounting clips and perimeter trims.
Customization Options
- Custom Colors — Match specific brand colors or corporate identity requirements
- Custom Sizes — Panels cut to exact dimensions for your sign cabinet or facade
- Surface Treatment — Hard-coat or anti-static options for high-touch environments
- Logo Printing — Panels accept UV printing, screen printing, and vinyl application
Why Choose Jietai for Signage-Grade Interlocking Panels
At Shandong Jietai New Material Technology Co., Ltd., we specialize in supplying high-performance polycarbonate panels for commercial signage applications. Every panel is manufactured to strict quality standards and tested for uniform light diffusion, impact strength, and UV resistance. We work with sign fabricators, architectural firms, and building owners worldwide to deliver the right panel specifications for each project.
Contact our team for a quote on interlocking polycarbonate panels for your next signage or light box project. We provide samples, technical datasheets, and installation guidance to ensure your project succeeds from concept to completion.
