Walkways and pedestrian corridors are essential elements in modern commercial, industrial, and public infrastructure projects. They connect buildings, shelter foot traffic, and enhance the architectural flow of a site. Selecting the right roofing material for these structures means balancing durability, natural light transmission, and ease of installation — and that is exactly where U-Lock polycarbonate panels excel.
Why U-Lock Polycarbonate for Walkways?

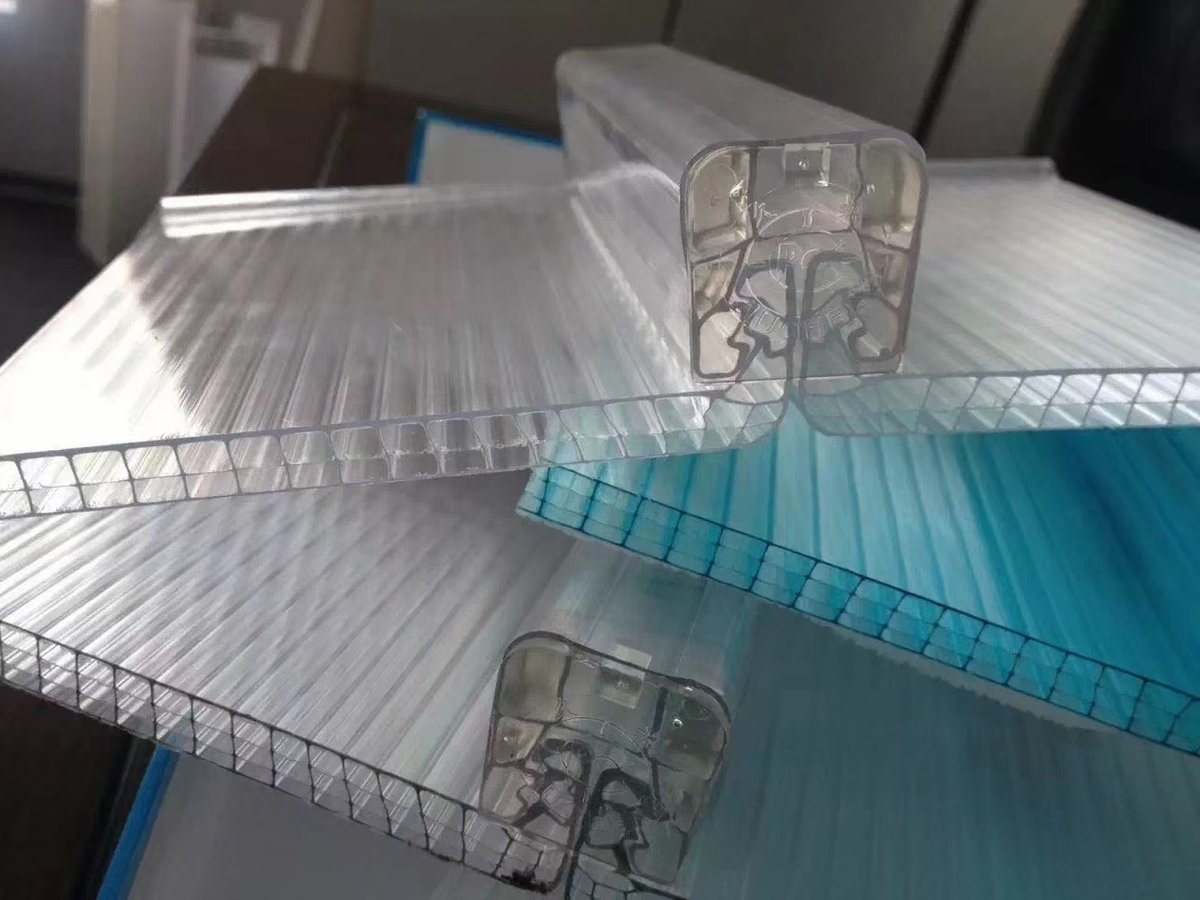

U-Lock polycarbonate panels are a structural roofing system that uses an interlocking U-shaped profile to join adjacent sheets. Unlike traditional corrugated sheets that rely on overlapping and exposed fasteners, the U-Lock mechanism creates a continuous, weather-tight surface with a clean, modern appearance. This makes it especially suitable for pedestrian corridors where both aesthetics and waterproof performance matter.
- Natural daylighting: Translucent panels transmit up to 80% of visible light, reducing the need for artificial lighting during daytime.
- Weather protection: The interlocking U-profile combined with EPDM gaskets prevents rain ingress even under heavy downpour.
- Lightweight structure: At approximately 2.0–4.0 kg/m², U-Lock panels impose far less dead load than glass, allowing lighter support frameworks.
- UV resistance: Double-sided co-extruded UV protective layer prevents yellowing and material degradation over years of sun exposure.
- Thermal insulation: The multi-wall hollow structure traps air between layers, providing measurable U-value improvements over single-layer glazing.
Technical Specifications
| Parameter | Available Range |
|---|---|
| Width | 600 mm (narrow profile) / 1040 mm (wide profile, engineering standard) |
| Thickness | 6 mm – 40 mm |
| Structure | Double-layer, four-layer, six-layer, honeycomb / multi-cavity |
| Standard Length | 6,000 mm (6 m); custom lengths available from 1 m up to 30 m |
| Weight (typical) | 2.0 – 4.0+ kg/m² (varies by thickness and structure) |
| Light Transmission | Up to 80% (clear); reduced for tinted/colored variants |
| UV Protection | Double-sided co-extruded UV layer |

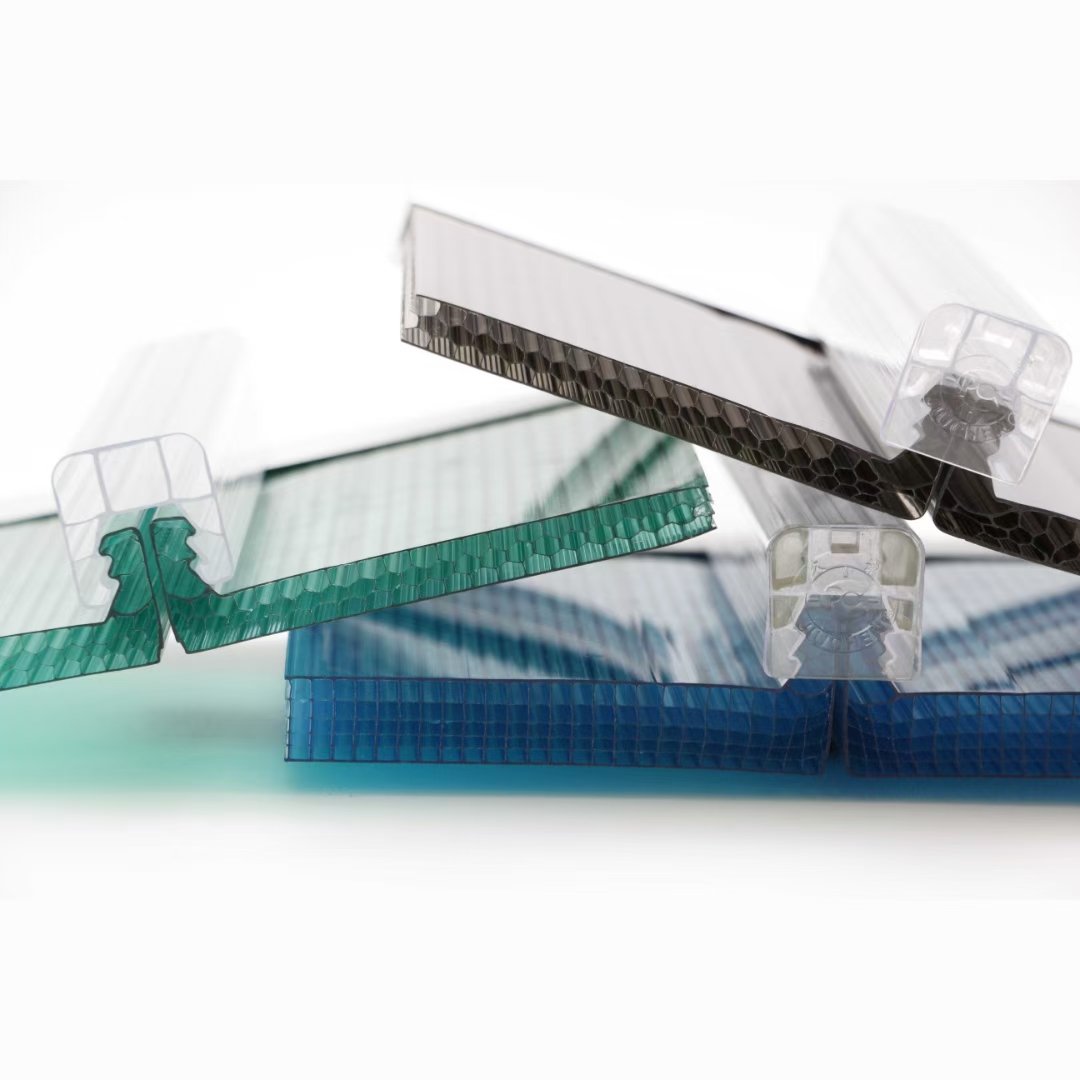

| Color Options | Clear, opal white, bronze, lake blue, grass green, gray |
| Locking Type | Single-hook / double-hook; double-hook recommended for superior wind uplift resistance |
| System Accessories | Aluminum U-channel profiles, EPDM rubber gaskets, aluminum cover caps |
Thickness Selection Guide for Walkway Projects
| Thickness | Recommended Application |
|---|---|
| 6 mm / 8 mm | Small residential walkways, garden corridors, short-span canopies |
| 10 mm / 12 mm | Commercial building corridors, school covered walkways, shopping center link bridges |
| 14 mm / 16 mm | Industrial site walkways, factory connecting corridors, northern climate insulated paths |
| 20 mm / 25 mm / 30 mm | Large-span public walkways, transportation hub pedestrian bridges, stadium concourse canopies (1040 mm wide profile recommended) |
Complete System Approach
A U-Lock walkway canopy is more than just the polycarbonate sheets. The complete system includes aluminum U-channel profiles that clamp the panel edges, EPDM rubber gaskets that form the waterproof seal, and aluminum cover caps that protect the joint from UV exposure and debris. This integrated approach ensures long-term reliability with minimal maintenance.
Installation Advantages
- Snap-fit assembly: Panels click into the U-channel without exposed screws through the sheet surface, eliminating potential leak points.
- Modular design: Standard 600 mm or 1040 mm widths allow fast coverage of long corridor runs with predictable material quantities.
- Thermal expansion accommodated: The U-Lock system allows each panel to expand and contract independently within its channel, preventing buckling on hot days.
- Low maintenance: The smooth surface resists dirt accumulation; occasional rinsing with water keeps panels clear.
Real-World Application
The image above shows a U-Lock polycarbonate walkway installation at an industrial-agricultural facility. The translucent roof panels provide natural daylight for workers moving between buildings while offering full protection from rain and UV exposure. Note the clean, uninterrupted roof line achieved through the interlocking panel system.
Why Source from Jietai?
As an experienced PC sheet supplier, Jietai connects you to a network of qualified manufacturers producing U-Lock polycarbonate panels in full thickness ranges from 6 mm to 40 mm. We offer custom color matching, length cutting to project specifications, and complete accessory kits (aluminum profiles, EPDM gaskets, cover caps) — all delivered in a single shipment. Our team provides technical guidance on span tables, purlin spacing, and drainage slope requirements so your walkway project is built right the first time.
Contact our team for a quote on your walkway or pedestrian corridor project — specify your required dimensions and we will prepare a tailored proposal with competitive pricing.
