Solid polycarbonate sheets deliver the optical clarity of glass with 250 times the impact strength—at half the weight. For architects, engineers, and procurement managers, this means safer buildings, lower structural steel costs, and faster on-site installation. Our UV-stabilized flat PC panels are specified worldwide for machine guarding, noise barriers, skylights, and security glazing where failure is not an option.
Key Advantages
Safety & Impact Performance
- 250× impact resistance vs. glass — Eliminates shattering risk in machine shops, public buildings, and high-traffic areas. Reduces injury liability and replacement downtime.
- UL 94 V-0 flame-retardant grade available — Meets fire codes for electrical enclosures, public transportation, and commercial interiors.
Cost & Installation Efficiency
- Half the weight of glass — Cuts structural steel requirements by up to 30%. Lighter panels mean fewer workers, faster handling, and lower freight costs.
- Cold-bendable without strength loss — Eliminates expensive thermoforming for curved canopies and arched skylights.
Long-Term Weather Durability
- Co-extruded UV barrier (single or double-sided) — Prevents yellowing and embrittlement for 10+ years of outdoor service. No film delamination issues.
- -40°C to +120°C operating range — Performs in desert heat and arctic cold without warping or cracking.
Technical Specifications
| Property | Value | Standard |
|---|---|---|
| Material | 100% virgin polycarbonate resin | ISO 10993 |
| Thickness Range | 0.8 – 20 mm (0.03 – 0.79 in) | — |
| Standard Sheet Sizes | 1,220 × 2,440 mm (4×8 ft) / 2,050 × 3,050 mm (6.7×10 ft) | — |
| Max Width | 2,100 mm (7 ft) | — |
| Light Transmission (Clear) | 85 – 90% | ASTM D1003 |
| Impact Strength (Izod) | ≥ 650 J/m | ASTM D256 |
| Density | 1.2 g/cm³ | ISO 1183 |
| Weight (per m², 3 mm) | ~3.6 kg/m² (0.74 lb/ft²) | — |
| Service Temperature | -40°C to +120°C (-40°F to +248°F) | — |
| UV Protection | Single / double-sided co-extruded | — |
| Flame Rating | UL 94 V-0 / V-2 (by formulation) | UL 94 |
| Warranty | 10-year limited UV degradation warranty | — |

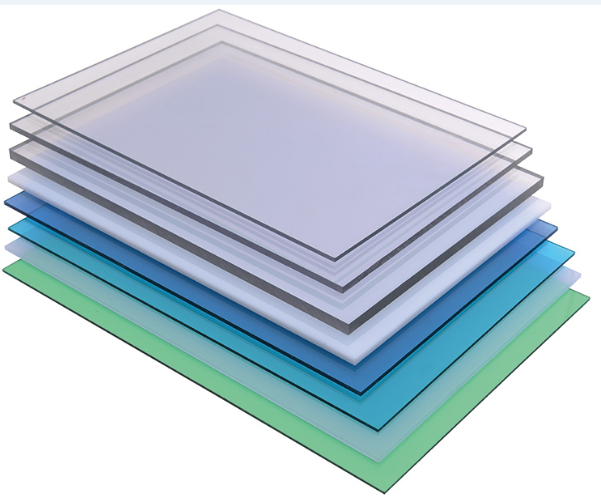

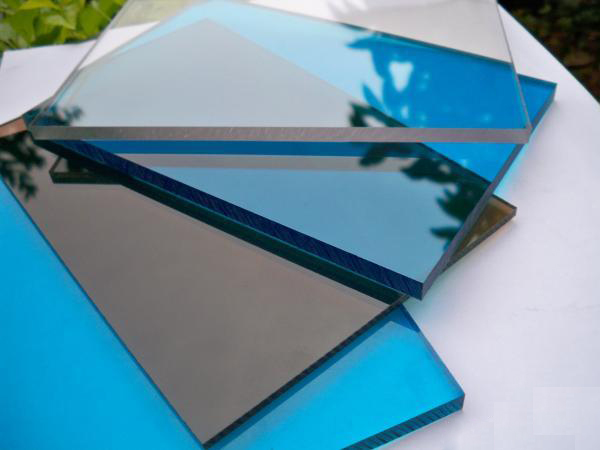

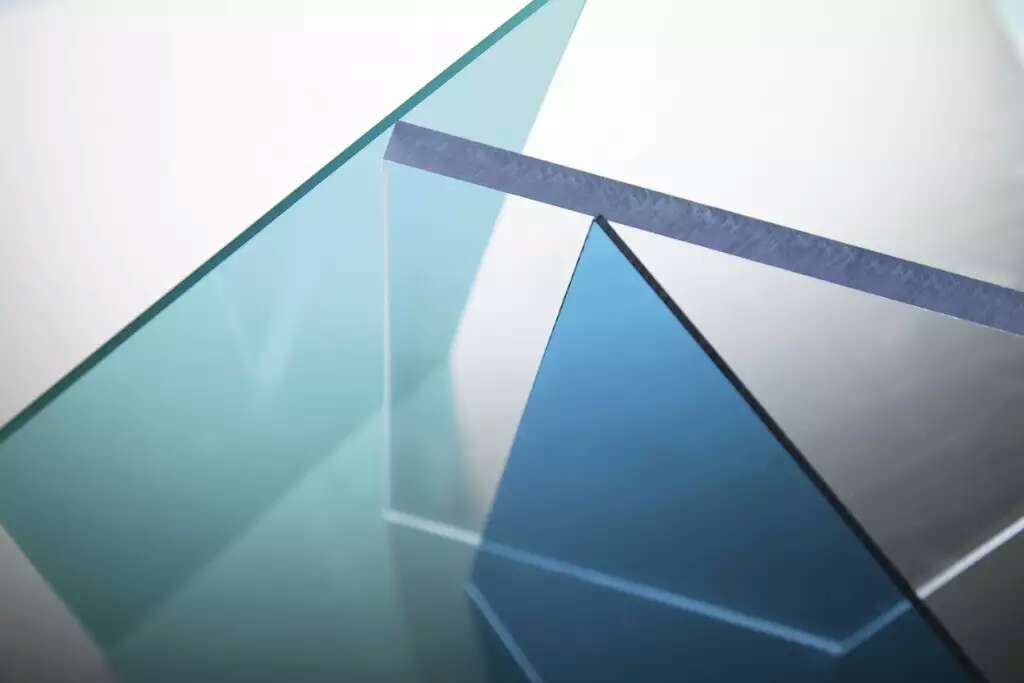

Product Gallery
Application Scenarios
Machine Guards & Industrial Safety Shields
Transparent polycarbonate barriers that withstand flying debris and accidental impact without shattering. CNC workshops and food processing plants use our solid PC sheets to meet OSHA machine guarding requirements while maintaining full visibility of operations.
Highway & Railway Sound Barriers
Solid PC noise walls combine excellent acoustic attenuation with long-term UV weathering resistance. Unlike acrylic alternatives, polycarbonate panels resist cracking from vibration and thermal cycling, minimizing maintenance costs over 15+ year service life.

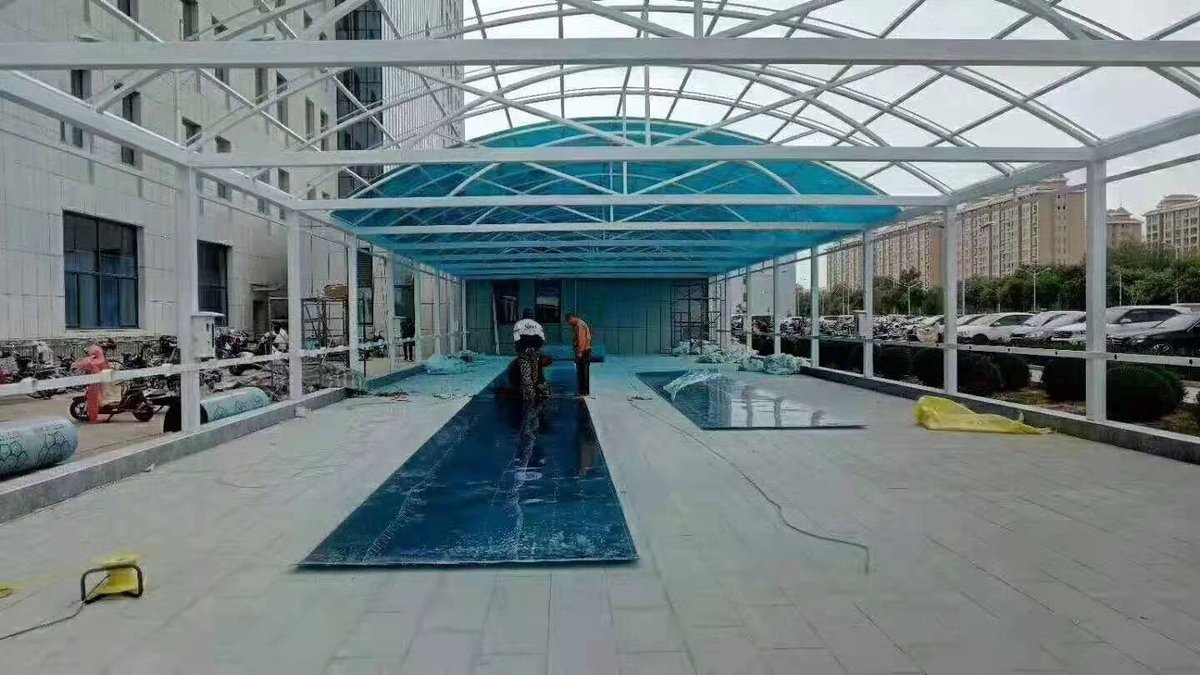

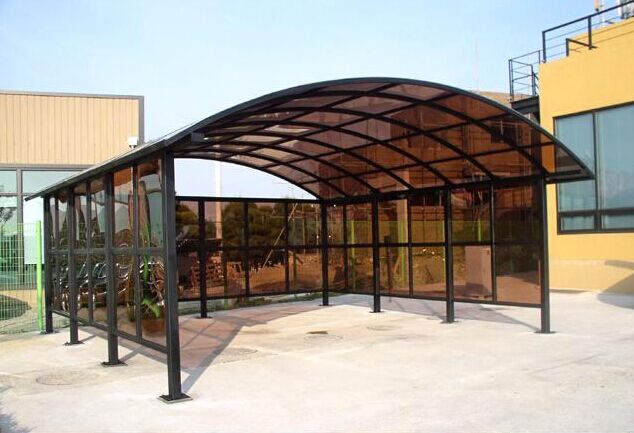

Skylights & Architectural Roof Glazing
Lightweight solid panels reduce structural steel tonnage while delivering 90% natural daylight transmission. Cold-bend forming allows curved skylight designs without expensive thermal pre-forming—saving both material and labor on commercial atriums and factory daylighting projects.
Security Glazing & Forced-Entry Protection
Banks, embassies, and retail security windows specify solid polycarbonate for UL 752 ballistic-rated laminates. Our clear PC sheets are the core layer in certified bullet-resistant glazing systems worldwide.
Greenhouse & Horticultural Glazing
UV-stabilized solid panels provide superior insulation over glass while diffusing light evenly for uniform crop growth. Resistance to hail impact and windborne debris makes them the preferred glazing for commercial nurseries in storm-prone regions.
Why Our Solid PC Sheets
- 100% Virgin Resin, Every Batch — No recycled or regrind content. Consistent optical clarity and mechanical properties verified by lot-level QC testing.
- In-House UV Co-Extrusion Line — Single or double-sided UV protection applied during sheet production, not post-laminated film that peels over time.
- Flexible Supply Options:
- Standard stock sheets shipped within 3–5 working days
- Custom cut-to-size service with ±1 mm tolerance
- CNC routing, drilling, and edge finishing available
- MOQ: 50 sheets for standard sizes; negotiable for trial orders
- Free Sample Program — Request up to 3 A5-size color swatches. Express shipping to your office in 5–7 business days.
- Technical Support — Application engineers available for installation consultation, load calculation, and custom specification assistance.
Certifications & Compliance
- UL 94 V-0 / V-2 flame rating certified
- REACH and RoHS compliant for EU import
- CE marking available upon request
- ISO 9001:2015 certified manufacturing facility
- Third-party SGS lab testing reports available
Frequently Asked Questions
What is the minimum order quantity?
Standard stock sizes start at 50 sheets. For custom dimensions, MOQ is negotiable—contact us with your project specifications for a tailored quote. Trial orders of 10–20 sheets are welcome for first-time buyers.
Can you cut sheets to custom sizes?
Yes. We offer precision cut-to-size service with ±1 mm tolerance. CNC routing, edge chamfering, and drilled holes are also available. Simply send us your cutting drawings or dimension list.
How long does delivery take?
Standard stock sheets ship within 3–5 working days after order confirmation. Custom-cut orders typically ship within 7–10 working days. Sea freight to major ports in Europe, North America, and Southeast Asia is available with estimated transit times provided at quotation.
Do you provide technical datasheets (TDS)?
Yes. Complete technical datasheets with mechanical, thermal, and optical properties are available for download. Third-party SGS test reports can be provided upon request for project documentation.
