What Are Interlocking Polycarbonate Panels?
Interlocking polycarbonate panels are multi-wall polycarbonate sheets with a tongue-and-groove joint formed on both edges. Push two panels together and the seam closes into a flush, continuous surface, so a shop front reads as one unbroken sheet of glazing rather than a row of separate boards. That clean joint is the whole point of the product: fewer visible fixings, a faster install, and a neater finish than frame-by-frame glazing.
The panels come in translucent, opal, and solid colours, so a storefront can be fully glazed with light-diffusing panels or dressed in a bold brand colour. Because polycarbonate weighs far less than glass, the supporting structure stays light, and the panels can be cut on site with standard tools.
Why Retailers Choose Interlocking Panels for Shop Fronts
Impact resistance a street front actually needs
Polycarbonate is around 200 times more impact-resistant than glass of the same thickness. For a ground-level shop front that faces foot traffic, trolleys, and the occasional knock, that difference means panels that stay intact instead of a shattered pane to replace.
Soft, even daylight without the glare
Clear and opal diffusion grades spread incoming light across the interior instead of throwing hot spots onto one wall. A diffused storefront looks bright and inviting from the street while keeping harsh midday glare off the merchandise.
A flush, weather-tight joint
The tongue-and-groove edge locks panel to panel without metal framing or visible fasteners. The joint is designed for vertical facades, where it sheds water naturally and keeps the surface smooth and easy to clean.
Built-in UV protection
Every panel carries a co-extruded UV layer on both faces, so colours stay stable and the surface resists yellowing through years of direct sunlight.

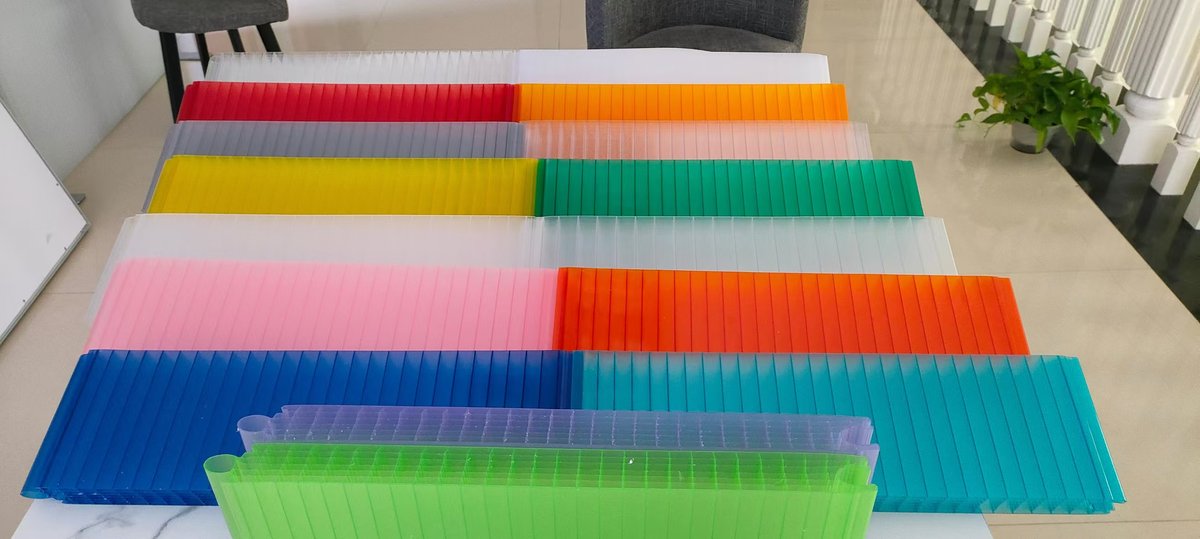

Colour and Finish Options
Interlocking panels come in clear, milky white, tea brown, lake blue, grass green, grey, and pink-diffusion grades, plus glass-grey diffusion for a frosted look. Solid colours suit brand-led shop fronts, while translucent and opal grades suit storefronts that need daylight. Custom RAL colours are available for chains that want an exact match to their corporate palette.
Technical Specifications
| Parameter | Available Range |
|---|---|
| Standard width | 500 mm |
| Thickness | 10 / 12 / 16 / 20 / 25 / 30 / 40 / 50 mm |

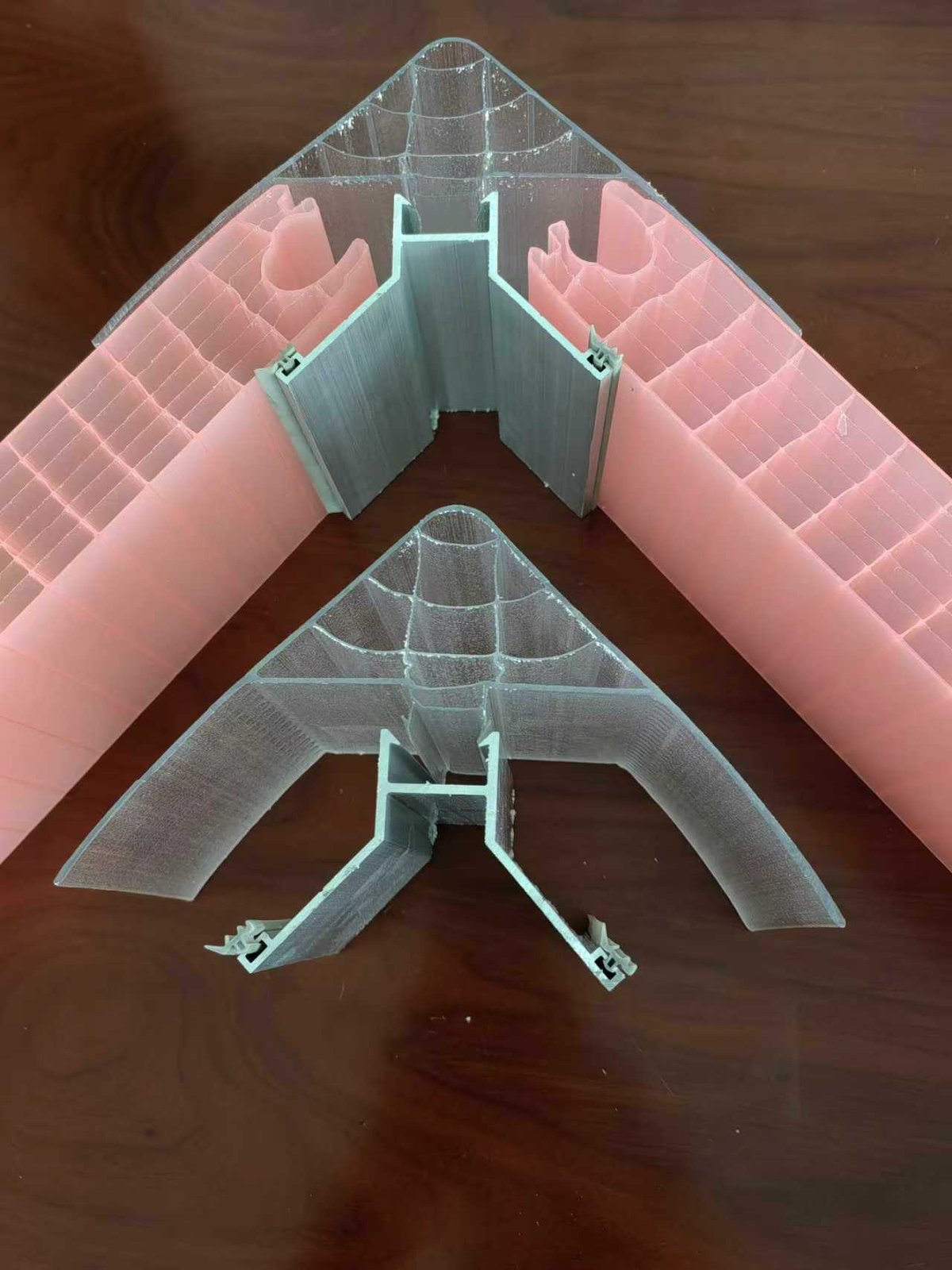

| Structure | Multi-wall honeycomb (X-braced), 3-layer up to 9+ chambers |
| Length | 6 m standard; custom 1–12 m; up to 16.5 m on request |
| Colours | Clear, milky white, tea brown, lake blue, grass green, grey, pink diffusion, glass-grey diffusion, custom RAL |
| UV protection | Co-extruded 30–50 micron on both sides |
| Light transmission | 65–82% (10 mm) down to 20–55% (50 mm) |
| U-value | ~3.5 W/m²K (10 mm) down to ~0.71 W/m²K (50 mm) |
| Weight | 2.0–8.0 kg/m² depending on thickness |
| Fire rating | B1 (GB 8624) / UL94 V-2 / Euroclass B-s1,d0 |
| Service temperature | -40 °C to +120 °C |
| Installation | Tongue-and-groove interlock; no metal connectors required |

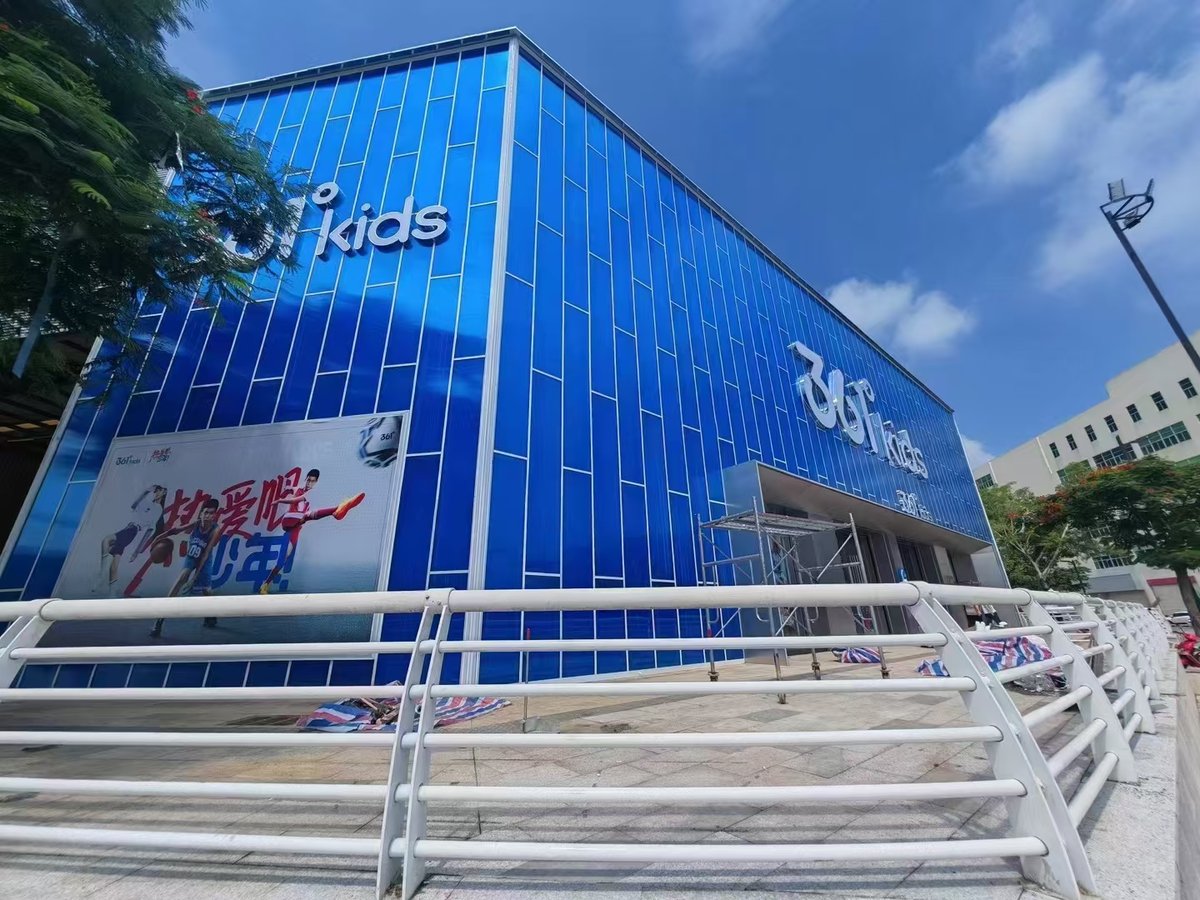

Where Interlocking Panels Work on a Storefront
Shop fronts and storefront glazing are the core application, but the same panel covers a lot of the retail building: illuminated signage and lightbox faces, interior partitions and fitting-room screens, entrance canopies and eave linings, and display-wall cladding. A single panel spec can carry the whole shop fit-out, which keeps procurement simple for multi-store rollouts.
Why Source Interlocking Panels from Jietai
Jietai supplies polycarbonate panels for facade, glazing, and signage projects worldwide. We work from industry-standard specifications, so the widths, thicknesses, and colour ranges we quote reflect what the market actually offers, not a single factory’s limited run. We source the right grade for your storefront, arrange custom lengths and RAL colours, and consolidate your order so the whole shop front ships together.
Need pricing for a shop front project? Contact our team for a quote with your panel area, thickness, and colour preference, and we will come back with pricing and lead time.
