Corrugated polycarbonate sheets combine the wave-profile load-bearing strength of metal roofing with the lightweight clarity and impact resistance of advanced polycarbonate. Designed for industrial roofing, agricultural buildings, and outdoor shelters, our UV-stabilized corrugated PC panels deliver consistent natural daylighting while withstanding hail, windborne debris, and extreme weather conditions. Compared to traditional metal or fiberglass roofing, they offer superior light transmission, easier handling, and zero rust maintenance—directly reducing both material and labor costs across the project lifecycle.
Key Advantages
Strength & Weather Resistance
- Corrugated profile structural rigidity — Wave-form geometry distributes loads across each panel, supporting snow loads and wind uplift without additional purlins. Reduces steel framing requirements by up to 20% versus flat sheets.
- 200× impact strength vs. fiberglass — Eliminates cracking and shattering from hailstorms, falling branches, and foot traffic during installation. No brittle failure during cold-weather handling.
- -40°C to +120°C service range — Maintains dimensional stability in freeze-thaw cycles. Will not warp, embrittle, or delaminate under sustained thermal stress.
Natural Daylighting & Energy Savings
- Up to 80% light transmission (clear grade) — Eliminates daytime artificial lighting in warehouses, factories, and livestock buildings. Typical payback on energy savings within 12–18 months.
- UV co-extruded protection layer — Prevents yellowing and light transmission loss over 10+ years of sun exposure. Single-sided UV for roofing; optional double-sided for vertical glazing.
Installation & Handling Efficiency
- One-sixth the weight of equivalent metal sheet — Two workers can handle panels that would require lifting equipment for steel. Cuts on-site with standard saw blades—no hot works or specialist cutting tools.
- Standard trapezoidal profiles (760/820/840/900/1000) — Compatible with common metal roof sheet profiles for seamless mixed-material installations. Pre-drilled fixing holes available upon request.
Technical Specifications
| Property | Value | Standard |
|---|---|---|
| Material | 100% virgin polycarbonate resin | ISO 10993 |
| Profile Types | Trapezoidal wave: 760, 820, 840, 900, 1000 | — |
| Thickness Range | 0.8 – 3.0 mm (0.03 – 0.12 in) | — |
| Standard Width | 760 – 1,100 mm (30 – 43 in) depending on profile | — |
| Custom Length | Up to 12,000 mm (40 ft); cut-to-length available | — |
| Light Transmission (Clear) | 75 – 80% | ASTM D1003 |
| Impact Strength (Izod) | ≥ 600 J/m | ASTM D256 |
| Service Temperature | -40°C to +120°C (-40°F to +248°F) | — |
| UV Protection | Single / double-sided co-extruded UV layer | — |
| Flame Rating | UL 94 V-2; B1 grade available | UL 94 |
| Warranty | 10-year limited light transmission warranty | — |

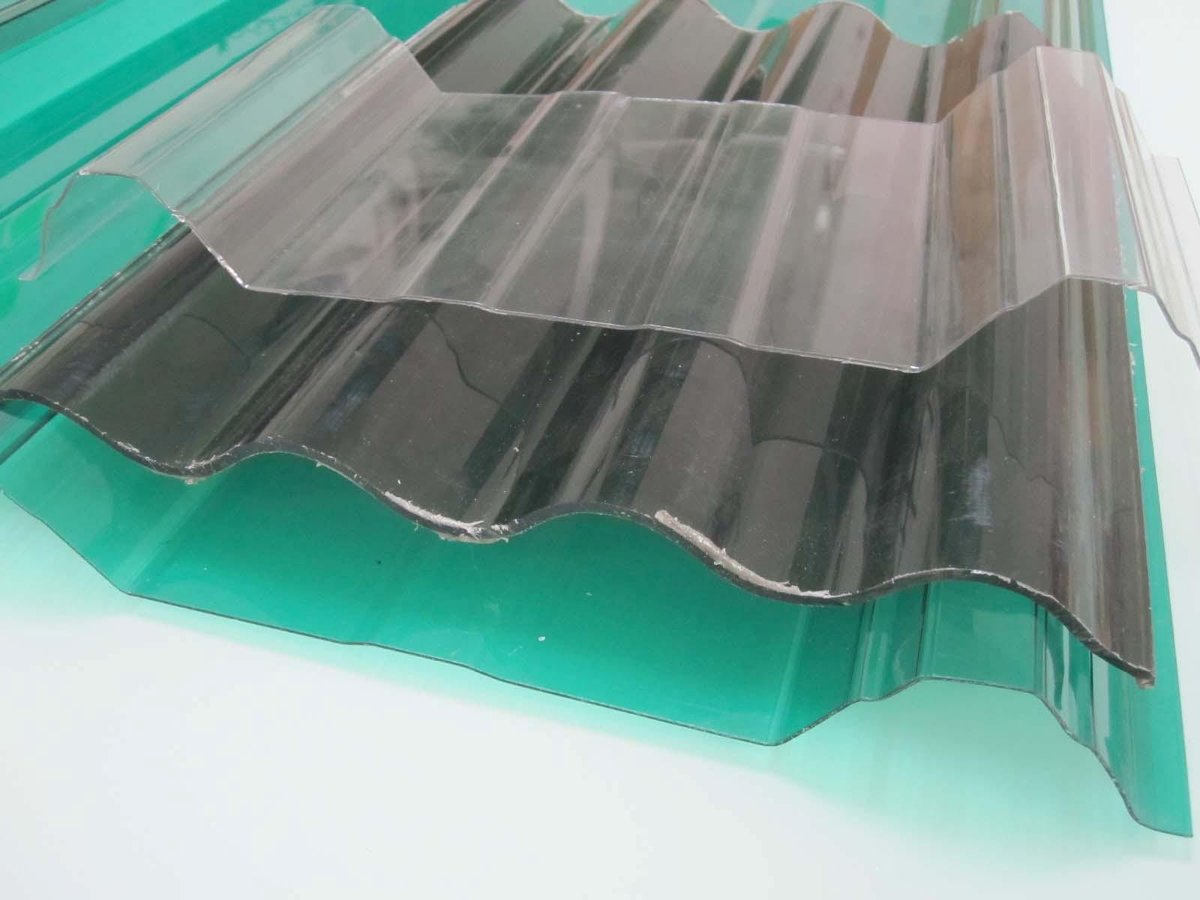

Color & Profile Options
- Clear — Maximum light transmission for warehouses and greenhouses
- Bronze — Solar heat reduction with warm natural tone
- Blue — Architectural accent for commercial and public buildings
- Green — Blends with rural and agricultural environments
- Opal White — Diffused light for even interior illumination
Product Gallery
Application Scenarios

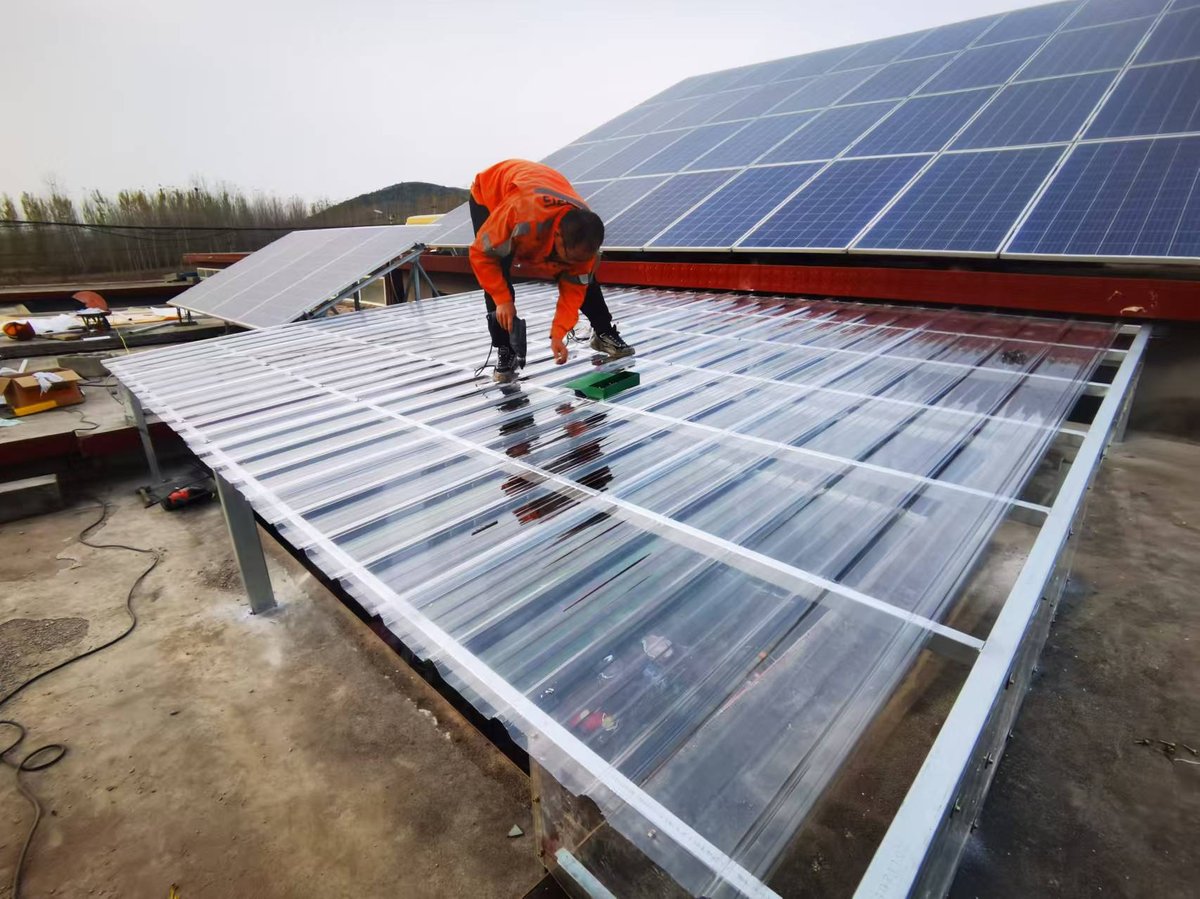

Industrial Factory & Warehouse Roofing
Replace aging fiberglass skylights and solid metal roof sections with clear corrugated PC panels to slash daytime lighting electricity costs. The wave profile matches standard trapezoidal metal sheets—no adapter flashing required. Fire-rated B1 grades available for compliance with industrial building codes.

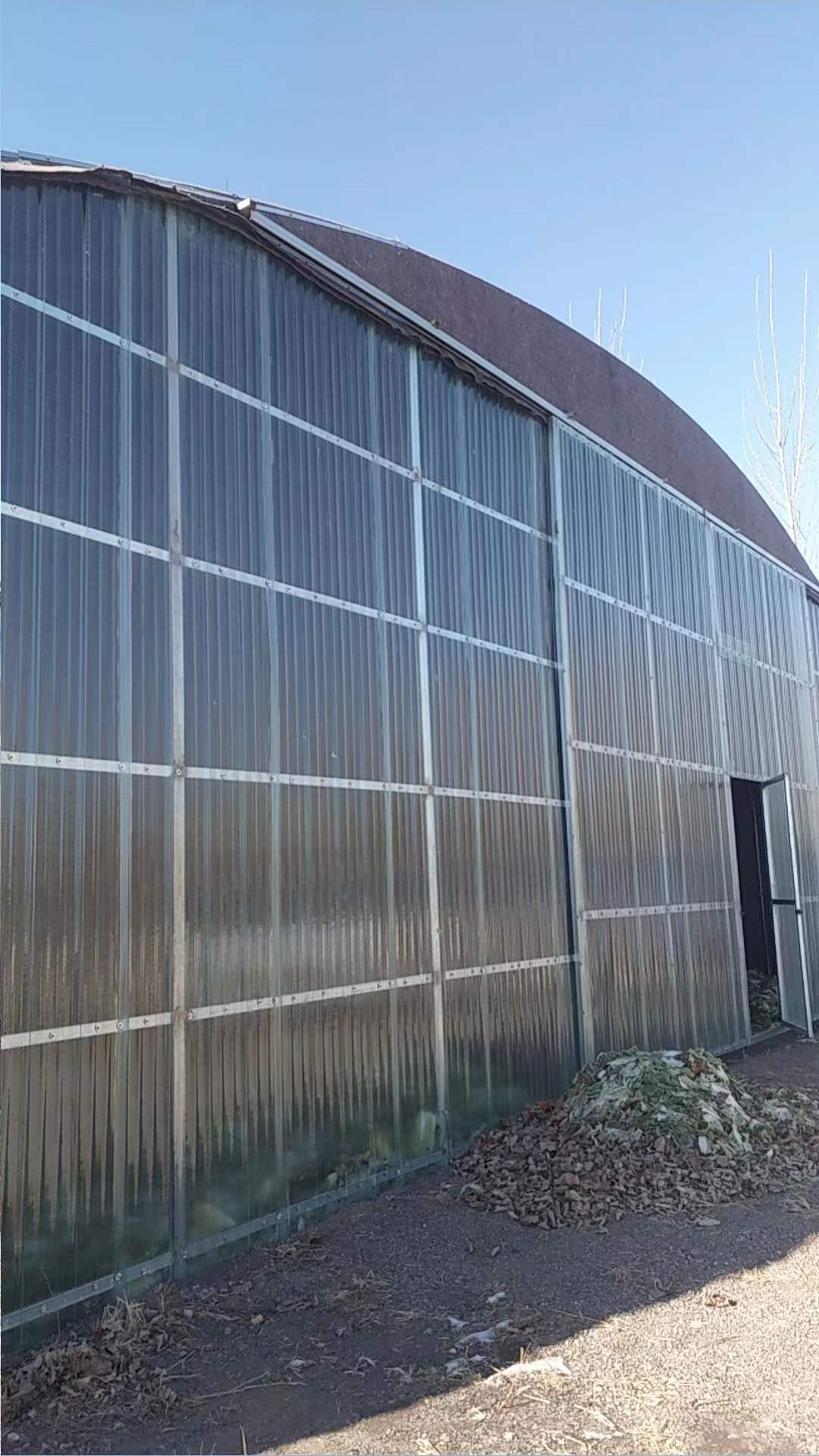

Agricultural Barns & Livestock Housing
Corrugated polycarbonate roofing provides the natural light livestock need for healthy growth cycles while withstanding ammonia-rich barn environments that corrode metal roofing within years. UV-stabilized clear panels maintain consistent light levels across seasons.

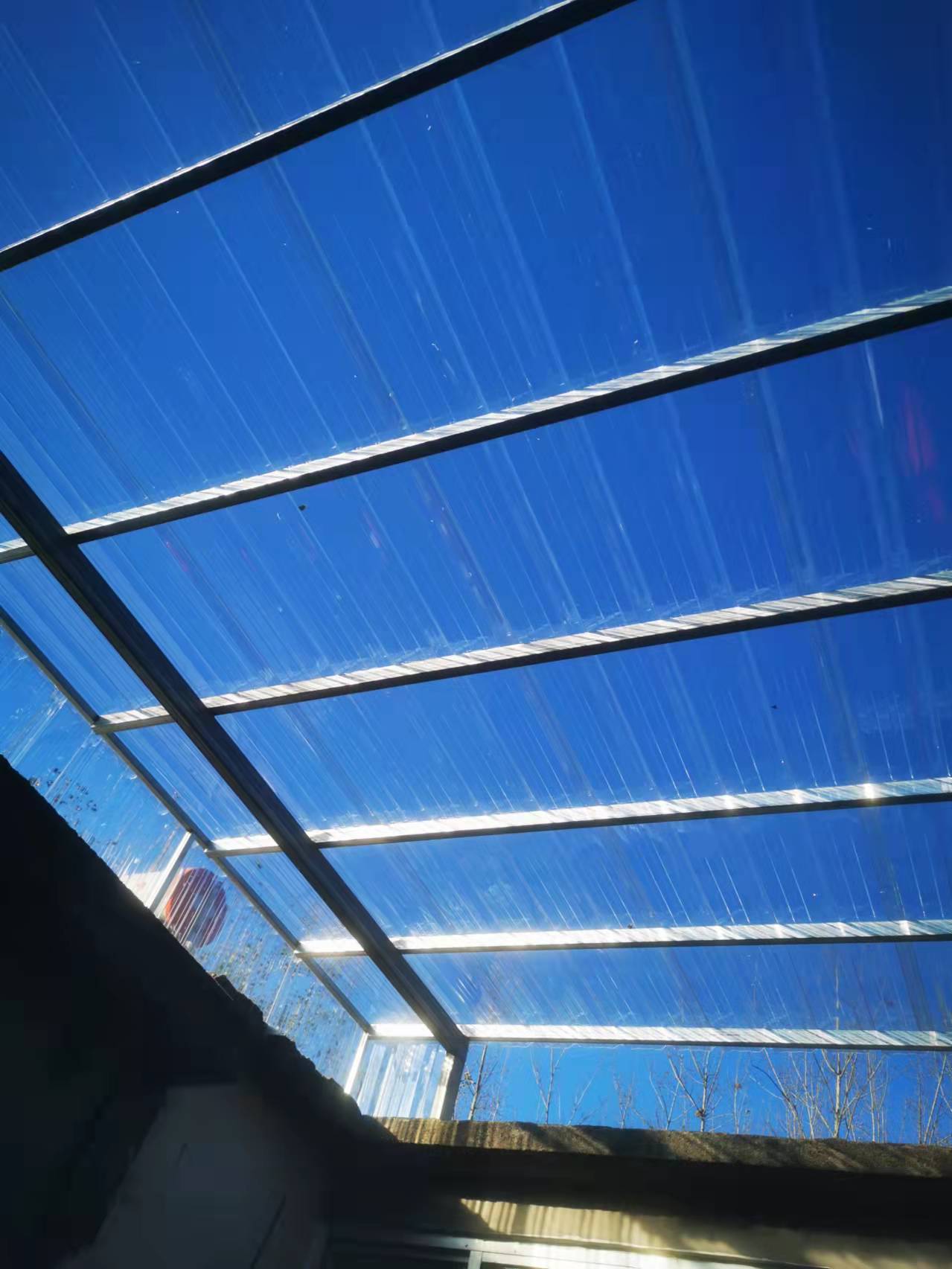

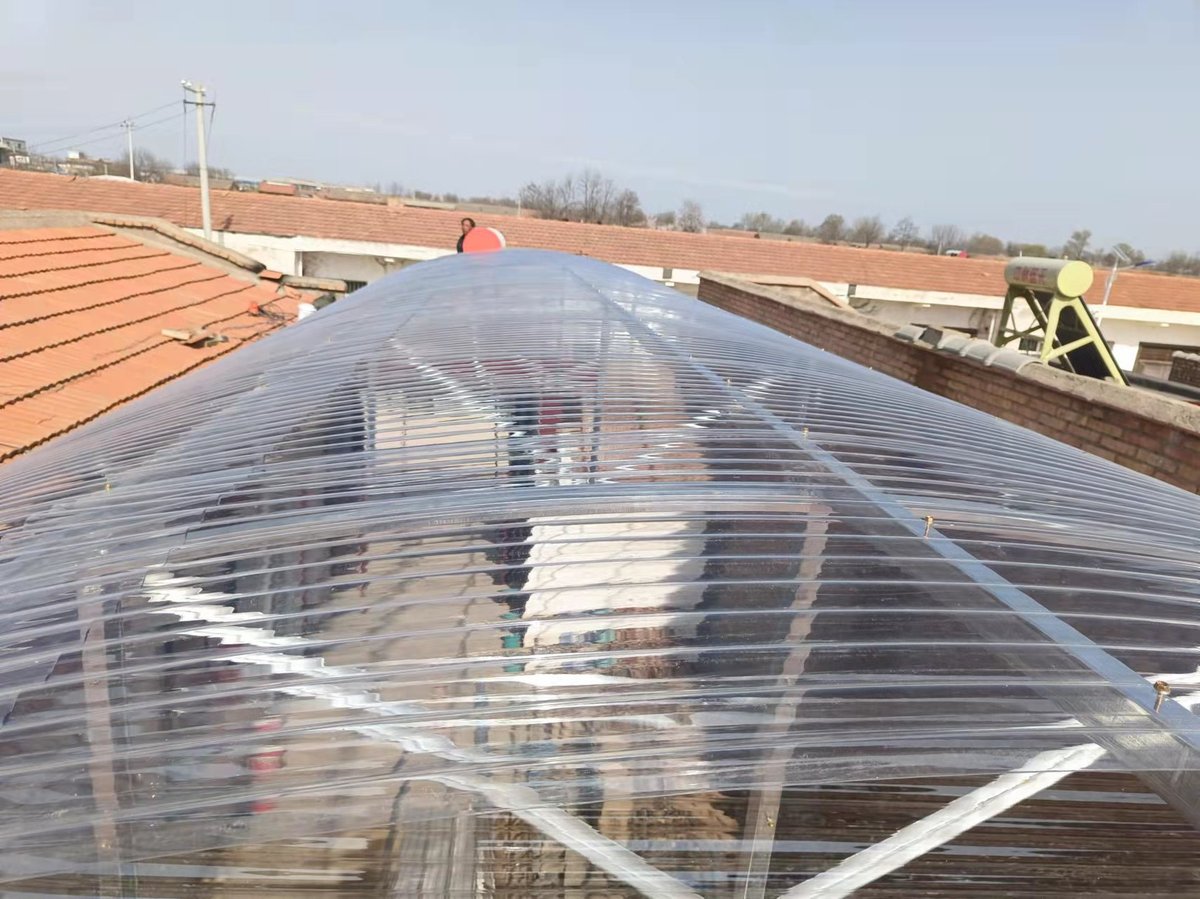

Carports, Canopies & Outdoor Shelters
Lightweight corrugated panels install quickly over steel or timber frames for residential and commercial carports. Impact-resistant construction protects vehicles from hail damage while maintaining a bright, open feel. Easy to clean with standard pressure washing.
Stadium & Public Space Canopies
Large-span corrugated polycarbonate roofing for sports facilities, market halls, and transit shelters. High light transmission eliminates daytime artificial lighting across wide areas. The corrugated profile provides inherent structural stiffness for spans up to 1.2 m between purlins.
Why Our Corrugated PC Sheets
- 100% Virgin Polycarbonate Resin — No recycled or regrind content. Consistent impact strength and optical clarity verified by lot-level QC testing with traceable batch records.
- In-House Co-Extrusion UV Line — UV protective layer bonded during sheet production, not post-applied film that delaminates after 2–3 years. Single or double-sided protection available.
- Flexible Supply & Customization:
- Standard stock profiles (760–1000) shipped within 3–5 working days
- Custom cut-to-length service with ±2 mm tolerance
- Pre-drilled fixing holes and anti-condensation fleece backing available
- MOQ: 30 sheets for standard profiles; negotiable for trial orders
- Free Sample Program — Request A5-size profile sections in your choice of color. Express shipping to your office within 7 business days.
Certifications & Compliance
- UL 94 V-2 flame rating certified; B1 grade available
- REACH and RoHS compliant for EU import
- ISO 9001:2015 certified production facility
- Third-party SGS test reports available on request
Frequently Asked Questions
Which profile type should I choose?
The 760 and 840 profiles are the most common for industrial roofing. If you are replacing existing metal sheets, measure your current sheet width and wave pitch—we can match it. Contact us with your existing profile dimensions for a compatibility check.
Can I cut and drill corrugated PC sheets on site?
Yes. Standard circular saws with fine-tooth blades or angle grinders work well. For drilled holes, use HSS drill bits at low speed and drill from the UV-protected side. We provide a free installation guide with every order.
How do these compare to fiberglass corrugated sheets?
Polycarbonate offers 200× the impact strength of fiberglass, 30% higher light transmission, and significantly better long-term UV stability. Fiberglass yellows and becomes brittle within 3–5 years; our UV co-extruded PC panels carry a 10-year warranty against yellowing.
